023588 DODGE - P4B-536-TAF-608-R

Brand - DODGE
Item Number - 023588 DODGE - P4B-536-TAF-608-R
Category - 4-Bolt Base TAF Pillow Block - Inch (Gray Iron Non-Expansion)
Shaft Size (inch) - 6.5
Shaft Size Symbol - 608
SAF Housing Number - 536
Description - P4B-536-TAF-608-R
Housing Only - 042632
Bearing Inner Unit - 023614
Approximate Weight of Pillow Block (lbs) - 510

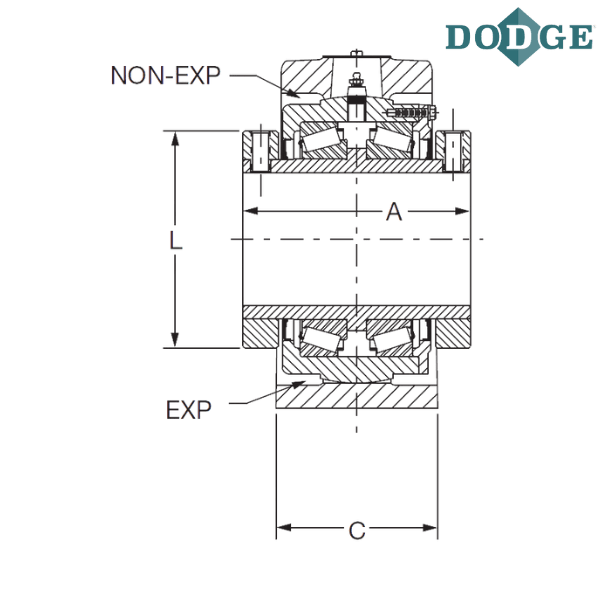

Length Through Bore (A) inch - 10.5

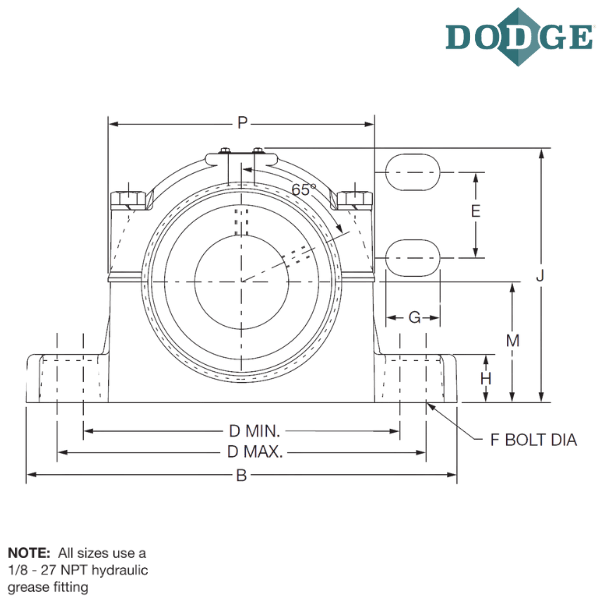

Overall Length (B) inch - 26.75
C (inch) - 7.13
Bolt to Bolt Minimum Distance (D min) inch - 21
Bolt to Bolt Maximum Distance (D max) inch - 23.63
E (inch) - 4.63
F-Bolt Diameter (inch) - 1
G (inch) - 2.44
H (inch) - 3
Overall Height (J) inch - 16.19
L (inch) - 11.38
Base to Center Height (M) inch - 7.5
P (inch) - 18.31
EXP* (inch) - 0.40625
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P4B - Pillow Block 4-Bolt, Cast Iron
5XX - Housing Series (TAF Only)
R - “XTS” Triple Lip Seal

* EXP. Total Expansion Divided Equally on Both Sides of Bearing (Expansion Bearing Only)

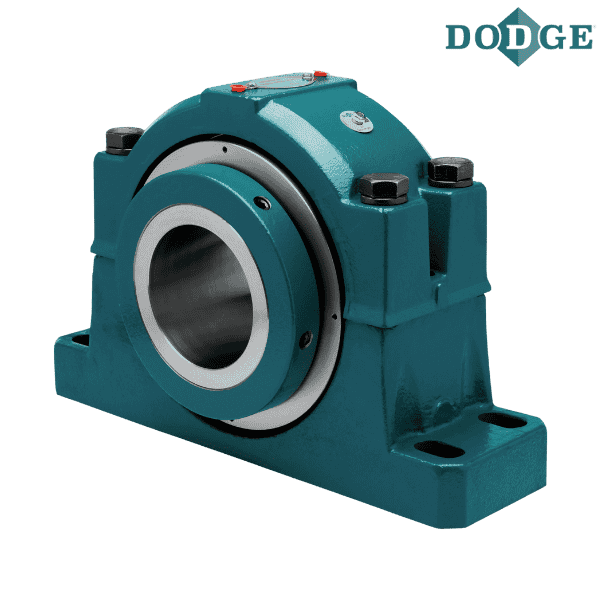

** Images are for representation purposes only
