023589 DODGE - P4B-538-TAF-615-R

Brand - DODGE
Item Number - 023589 DODGE - P4B-538-TAF-615-R
Category - 4-Bolt Base TAF Pillow Block - Inch (Gray Iron Non-Expansion)
Shaft Size (inch) - 6.9375
Shaft Size Symbol - 615
SAF Housing Number - 538
Description - P4B-538-TAF-615-R
Housing Only - 042634
Bearing Inner Unit - 023615
Approximate Weight of Pillow Block (lbs) - 52

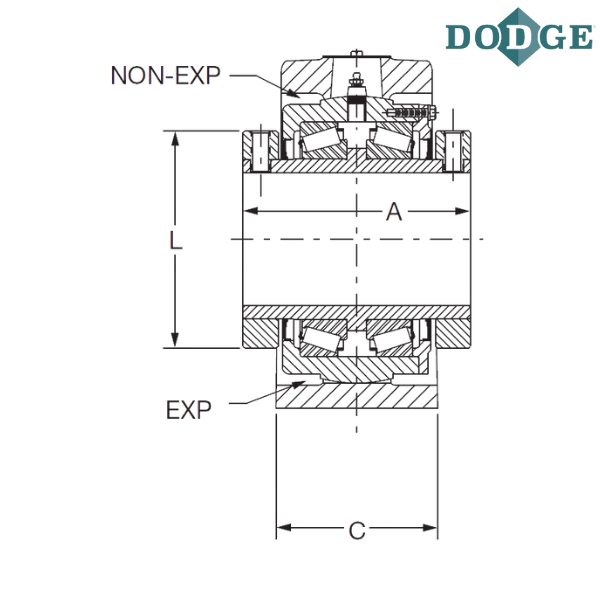

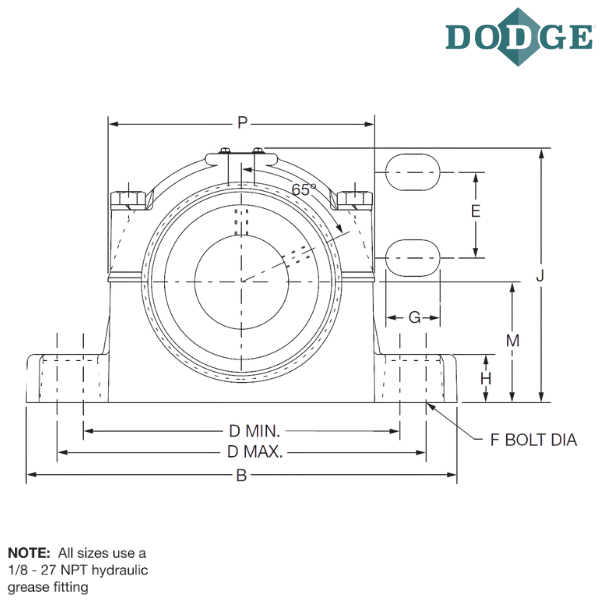

Length Through Bore (A) inch - 10.5
Overall Length (B) inch - 28
C (inch) - 7.5
Bolt to Bolt Minimum Distance (D min) inch - 21.63
Bolt to Bolt Maximum Distance (D max) inch - 24.38
E (inch) - 4.5
F-Bolt Diameter (inch) - 1.25
G (inch) - 2.75
H (inch) - 3.13
Overall Height (J) inch - 16.56
L (inch) - 11.38
Base to Center Height (M) inch - 7.88
P (inch) - 18.31
EXP* (inch) - 0.40625
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P4B - Pillow Block 4-Bolt, Cast Iron
5XX - Housing Series (TAF Only)
R - “XTS” Triple Lip Seal

* EXP. Total Expansion Divided Equally on Both Sides of Bearing (Expansion Bearing Only)

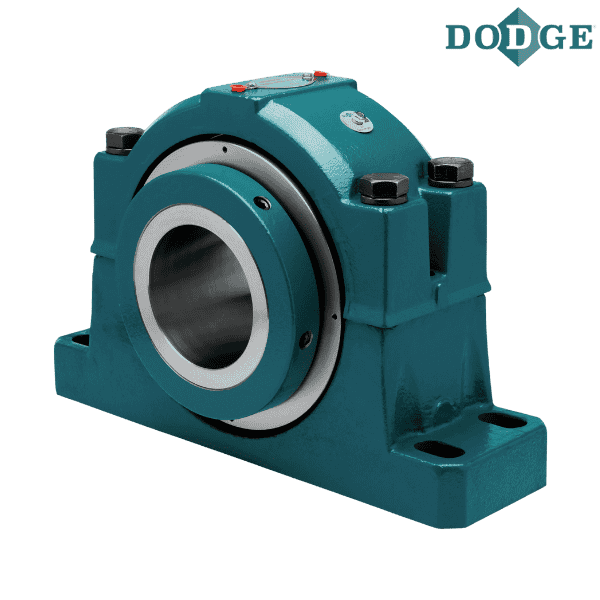

** Images are for representation purposes only
