Description
Brand - DODGE
Item Number - 023610 DODGE - S1U-TAF-507R
Category - TAF Units - Inch (“S-1” Units - Gray Iron)
Shaft Size (inch) - 5.4375
Part Name - S1U-TAF-507R
Approximate Weight (lbs) - 155

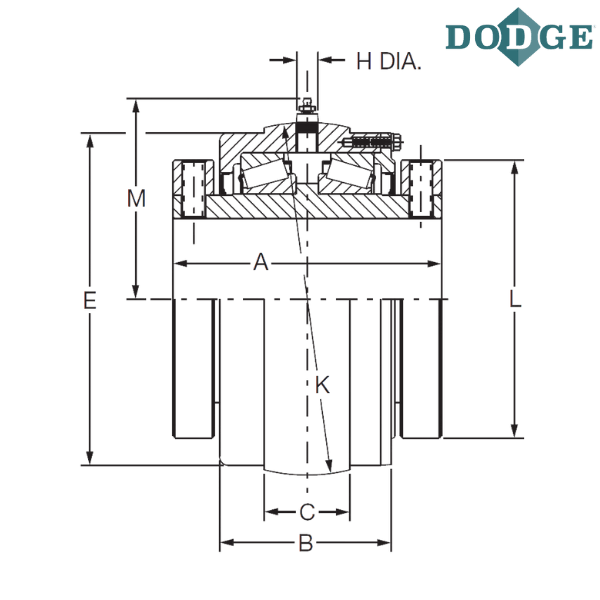

Length Through Bore (A) inch - 9
B (inch) - 5.88
C (inch) - 2.56
Insert Outer Diameter (E, Machine Side) inch - 11.19
E (Cast Side) inch - 11.19
H (inch) - 0.94
K *** (inch) - 11.563
L (inch) - 9.38
M (inch) - 6.91
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
S1U - S-1, Unit Cast Iron
R - “XTS” Triple Lip Seal
*** .000,-.003”

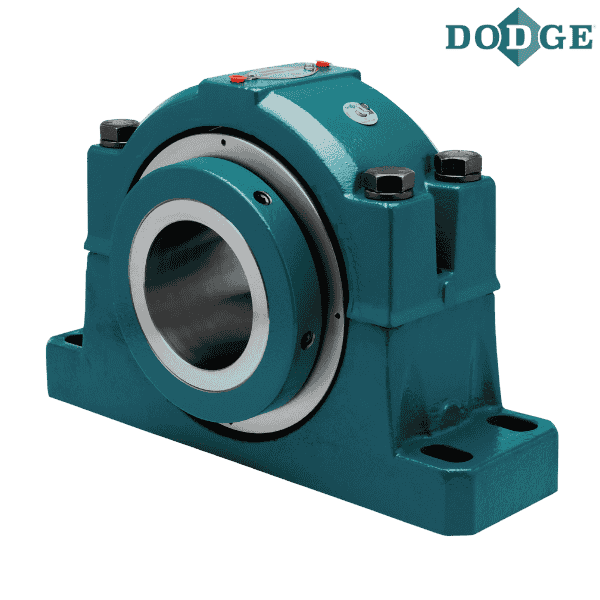

**** Images are for representation purposes only
