Description
Brand - DODGE
Item Number - 023614 DODGE - S1U-TAF-608R
Category - TAF Units - Inch (“S-1” Units - Gray Iron)
Shaft Size (inch) - 6.5
Part Name - S1U-TAF-608R
Approximate Weight (lbs) - 182

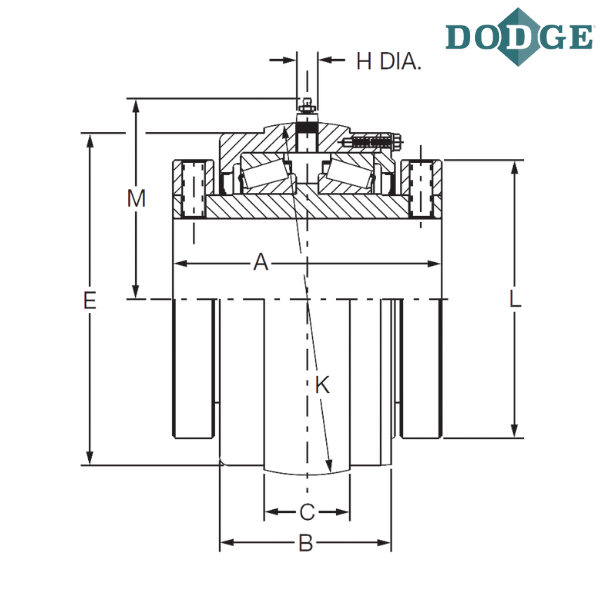

Length Through Bore (A) inch - 10.5
B (inch) - 7.13
C (inch) - 3
Insert Outer Diameter (E, Machine Side) inch - 13.25
E (Cast Side) inch - 13.25
H (inch) - 0.94
K *** (inch) - 13.748
L (inch) - 11.38
M (inch) - 8
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
S1U - S-1, Unit Cast Iron
R - “XTS” Triple Lip Seal
*** .000,-.003”

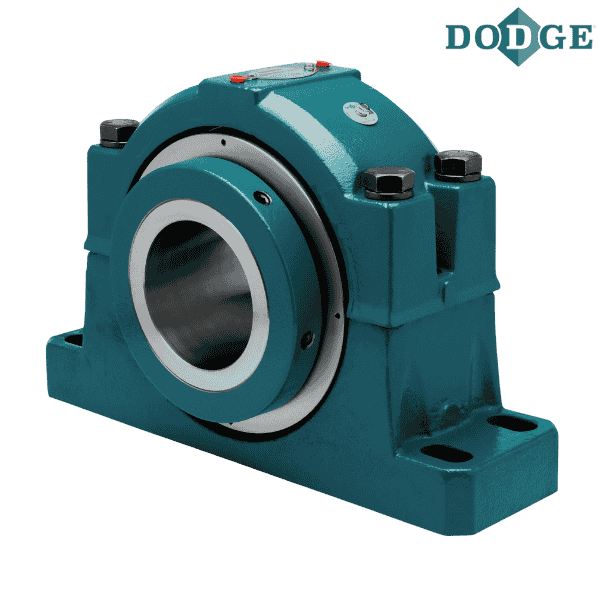

**** Images are for representation purposes only
