023628 DODGE - P2B-E-075MR

Brand - DODGE
Item Number - 023628 DODGE - P2B-E-075MR
Category - Type E-Xtra - Plummer Block - Metric (2-Bolt)
Shaft Size (mm) - 75
Part Name - P2B-E-075MR
Approximate Weight (lbs) - 27
Approximate Weight (kg) - 12.246984
Length Through Bore (A) mm - 114.3
Overall Length (B) mm - 305
C (mm) - 76
Bolt to Bolt Minimum Distance (D min) mm - 236.5
Bolt to Bolt Maximum Distance (D max) mm - 246
F-Bolt Diameter - M20
G (mm) - 27
H (mm) - 48
Overall Height (J1) mm - 161.1
L (mm) - 120
Base to Center Height (M) mm - 79.4
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2-Bolt, Cast Iron
E - Type E
M - Millimeter
R - “XTS” Triple Lip Seal

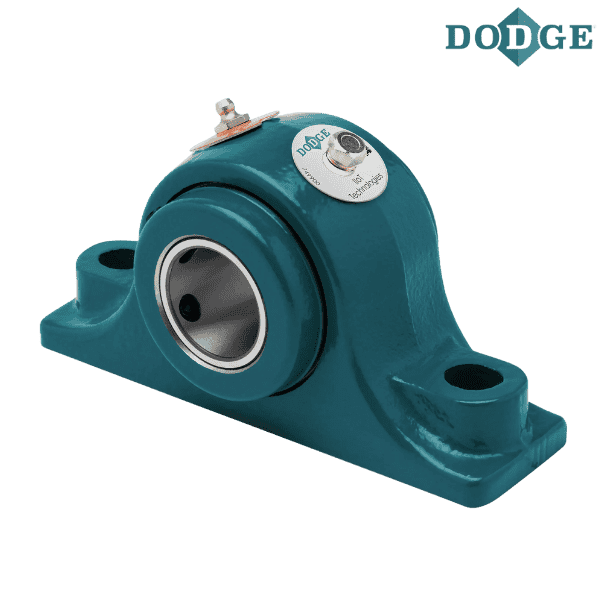

** Images are for representation purposes only
