023635 DODGE - P4B-E-125MR

Brand - DODGE
Item Number - 023635 DODGE - P4B-E-125MR
Category - Type E-Xtra - Plummer Block - Metric (4-Bolt)
Shaft Size (mm) - 125
Part Name - P4B-E-125MR
Approximate Weight (lbs) - 136
Approximate Weight (kg) - 61.688512

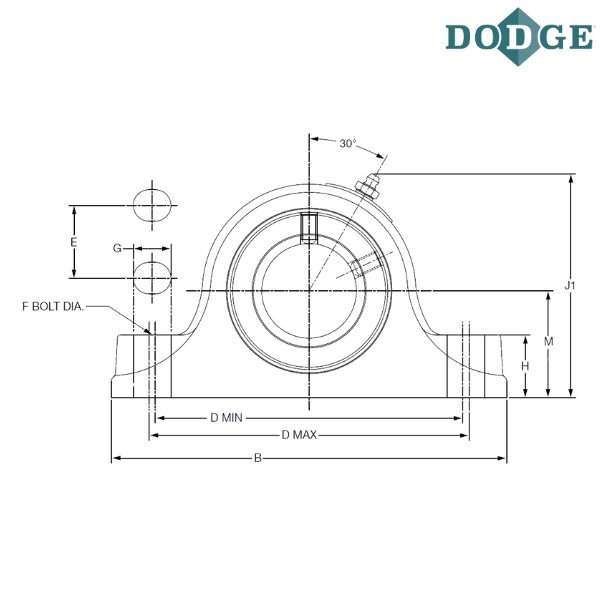

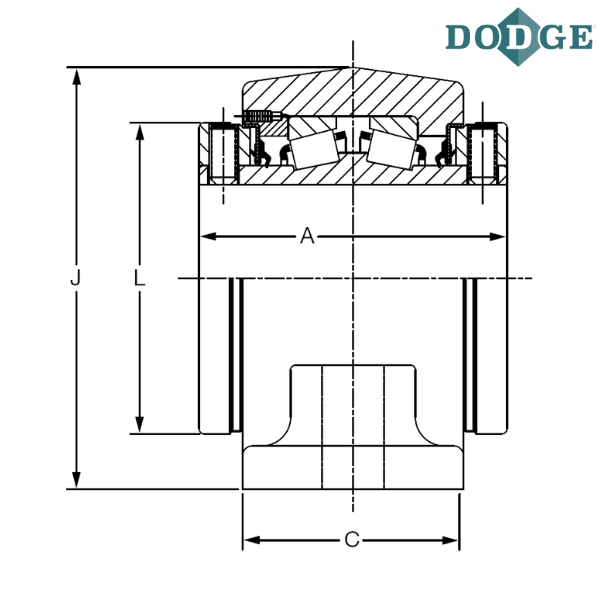

Length Through Bore (A) mm - 184.2
Overall Length (B) mm - 470
C (mm) - 130
Bolt to Bolt Minimum Distance (D min) mm - 387.4
Bolt to Bolt Maximum Distance (D max) mm - 400
E (mm) - 73
F-Bolt Diameter - M24
G (mm) - 32
H (mm) - 76
Overall Height (J1) mm - 276
L (mm) - 189
Base to Center Height (M) mm - 139.7
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P4B - Pillow Block 4-Bolt, Cast Iron
E - Type E
M - Millimeter
R - “XTS” Triple Lip Seal

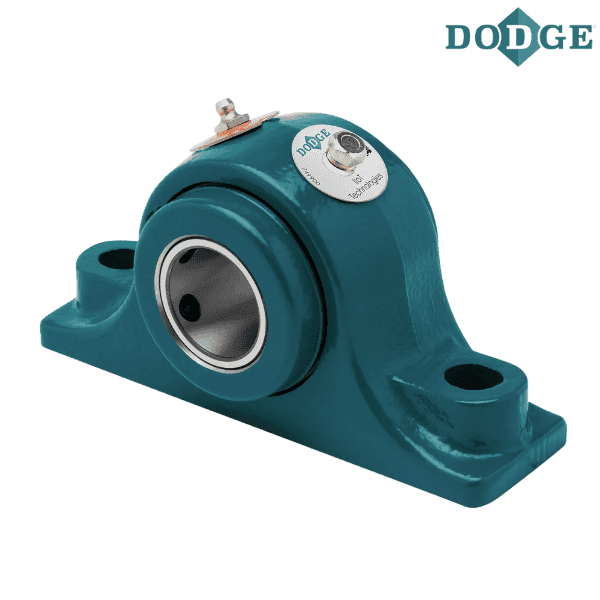

** Images are for representation purposes only
