Description
Brand - DODGE
Item Number - 023701 DODGE - S1U-DI-040M
Category - DOUBLE-INTERLOCK - Metric (“S-1” Units)
Shaft Size (mm) - 40
Part Name - S1U-DI-040M
Approximate Weight (lbs) - 6
Approximate Weight (kg) - 2.721552
A (mm) - 3.375
B (mm) - 2.313
C (mm) - 1.188
E (Machine Side) mm - 3.75
E (Cast Side) mm - 3.8125
H (mm) - 0.688
K * (mm) - 4.125
L (mm) - 3.188
M (mm) - 2.89
Notes :
S1U - S-1, Unit Cast Iron
DI - DOUBLE-INTERLOCK
M - Millimeter
* +.000 to -.001”

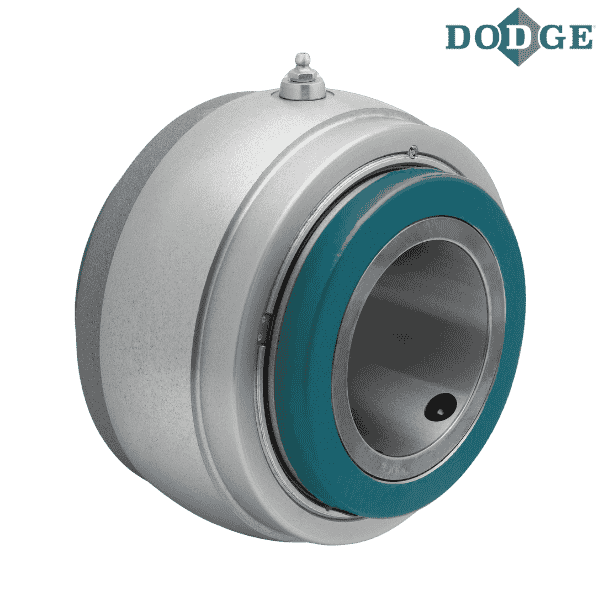

** Images are for representation purposes only
