Description
Brand - DODGE

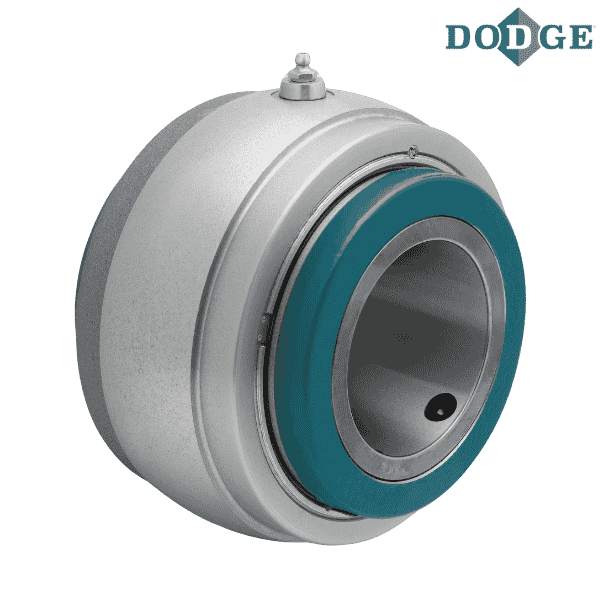

Item Number - 023703 DODGE - S1U-DI-050M
Category - DOUBLE-INTERLOCK - Metric (“S-1” Units)
Shaft Size (mm) - 50
Part Name - S1U-DI-050M
Approximate Weight (lbs) - 8
Approximate Weight (kg) - 3.628736
A (mm) - 3.5
B (mm) - 2.875
C (mm) - 1.5
E (Machine Side) mm - 4.125
E (Cast Side) mm - 4.1875
H (mm) - 0.688
K * (mm) - 4.562
L (mm) - 3.438
M (mm) - 3.1
Notes :
S1U - S-1, Unit Cast Iron
DI - DOUBLE-INTERLOCK
M - Millimeter
* +.000 to -.001”
** Images are for representation purposes only
