Description
Brand - DODGE

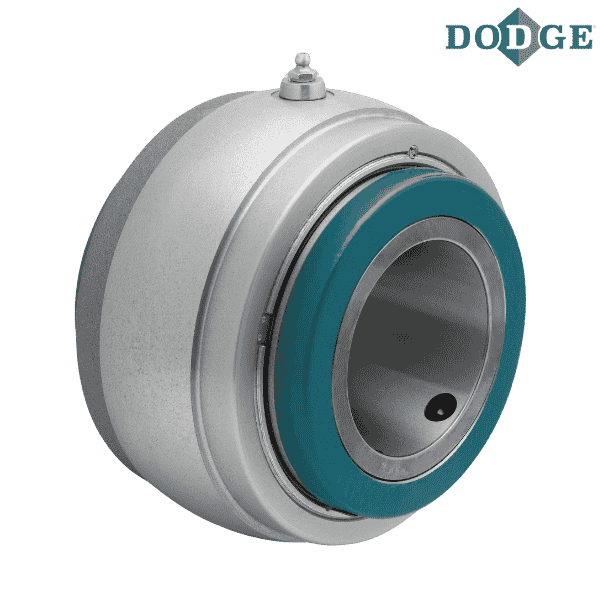

Item Number - 023704 DODGE - S1U-DI-055M
Category - DOUBLE-INTERLOCK - Metric (“S-1” Units)
Shaft Size (mm) - 55
Part Name - S1U-DI-055M
Approximate Weight (lbs) - 10
Approximate Weight (kg) - 4.53592
A (mm) - 3.75
B (mm) - 2.563
C (mm) - 1.563
E (Machine Side) mm - 4.5
E (Cast Side) mm - 4.625
H (mm) - 0.688
K * (mm) - 5
L (mm) - 3.75
M (mm) - 3.32
Notes :
S1U - S-1, Unit Cast Iron
DI - DOUBLE-INTERLOCK
M - Millimeter
* +.000 to -.001”
** Images are for representation purposes only
