Description
Brand - DODGE
Item Number - 023705 DODGE - S1U-DI-060M
Category - DOUBLE-INTERLOCK - Metric (“S-1” Units)
Shaft Size (mm) - 60
Part Name - S1U-DI-060M
Approximate Weight (lbs) - 11
Approximate Weight (kg) - 4.989512

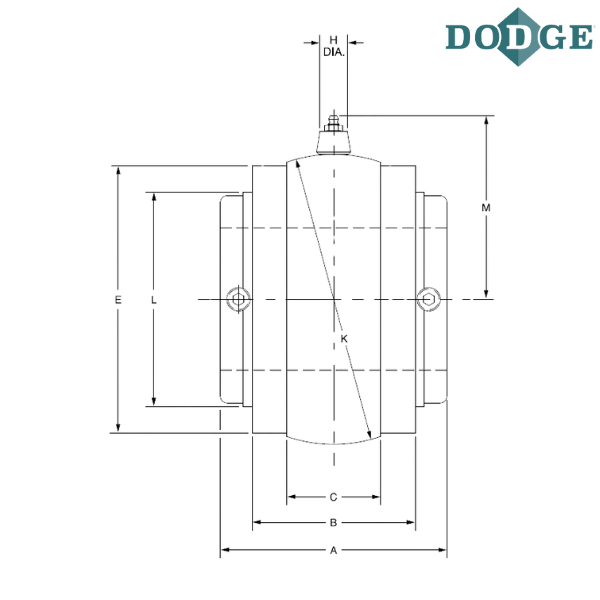

A (mm) - 4
B (mm) - 2.75
C (mm) - 1.438
E (Machine Side) mm - 4.812
E (Cast Side) mm - 4.875
H (mm) - 0.688
K * (mm) - 5.186
L (mm) - 4.063
M (mm) - 3.41
Notes :
S1U - S-1, Unit Cast Iron
DI - DOUBLE-INTERLOCK
M - Millimeter
* +.000 to -.001”

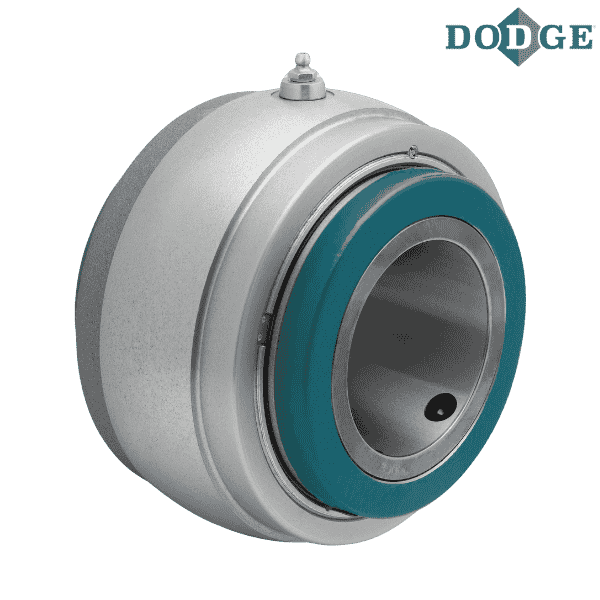

** Images are for representation purposes only
