Description
Brand - DODGE
Item Number - 023708 DODGE - S1U-DI-075M
Category - DOUBLE-INTERLOCK - Metric (“S-1” Units)
Shaft Size (mm) - 75
Part Name - S1U-DI-075M
Approximate Weight (lbs) - 17
Approximate Weight (kg) - 7.711064
A (mm) - 4.5
B (mm) - 3
C (mm) - 1.875
E (Machine Side) mm - 5.563
E (Cast Side) mm - 5.625
H (mm) - 0.688
K * (mm) - 6.061
L (mm) - 4.719
M (mm) - 3.85
Notes :
S1U - S-1, Unit Cast Iron
DI - DOUBLE-INTERLOCK
M - Millimeter
* +.000 to -.001”

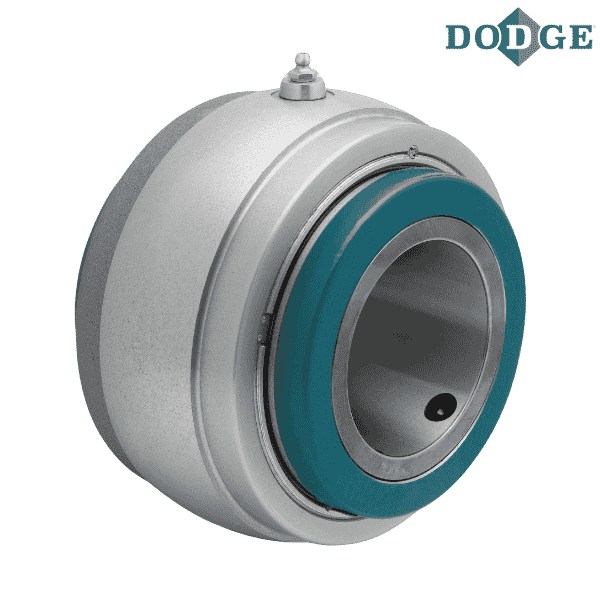

** Images are for representation purposes only
