Description
Brand - DODGE
Item Number - 023711 DODGE - S1U-DI-090M
Category - DOUBLE-INTERLOCK - Metric (“S-1” Units)
Shaft Size (mm) - 90
Part Name - S1U-DI-090M
Approximate Weight (lbs) - 31
Approximate Weight (kg) - 14.061352
A (mm) - 5
B (mm) - 3.5
C (mm) - 2
E (Machine Side) mm - 6.813
E (Cast Side) mm - 6.875
H (mm) - 0.688
K ** (mm) - 7.373
L (mm) - 5.531
M (mm) - 4.51
Notes :
S1U - S-1, Unit Cast Iron
DI - DOUBLE-INTERLOCK
M - Millimeter
** +/-.0005”

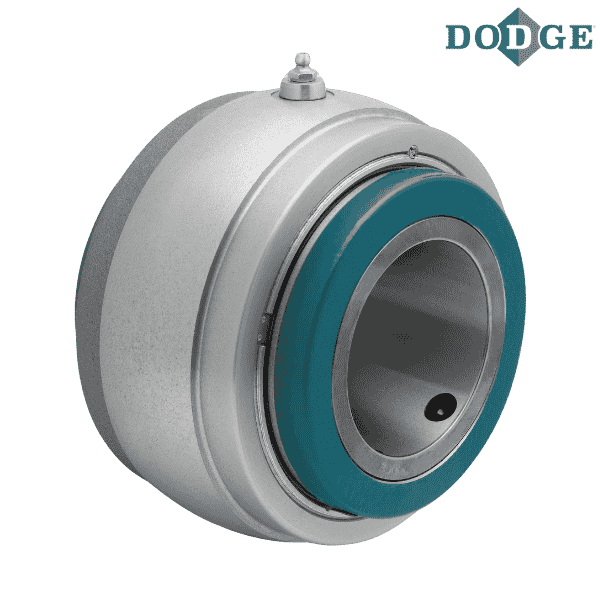

*** Images are for representation purposes only
