Description
Brand - DODGE
Item Number - 023712 DODGE - S1U-DI-100M
Category - DOUBLE-INTERLOCK - Metric (“S-1” Units)
Shaft Size (mm) - 100
Part Name - S1U-DI-100M
Approximate Weight (lbs) - 42
Approximate Weight (kg) - 19.050864
A (mm) - 6.25
B (mm) - 4.5
C (mm) - 2.375
E (Machine Side) mm - 7.438
E (Cast Side) mm - 7.5
H (mm) - 0.313
K ** (mm) - 7.997
L (mm) - 6.125
M (mm) - 5.16
Notes :
S1U - S-1, Unit Cast Iron
DI - DOUBLE-INTERLOCK
M - Millimeter
** +/-.0005”

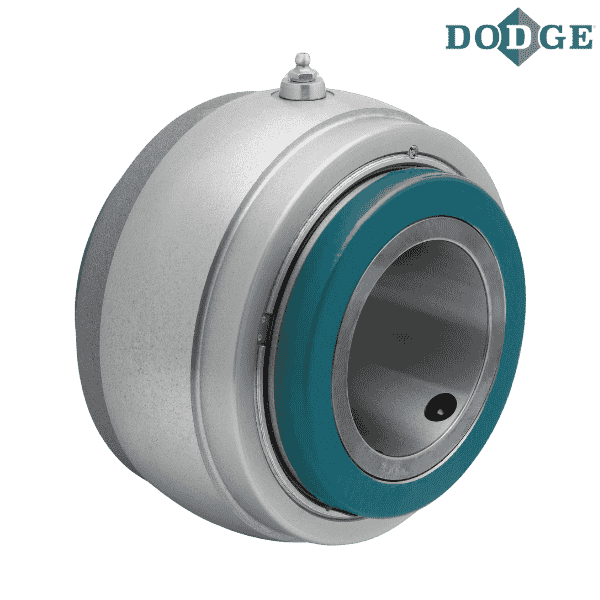

*** Images are for representation purposes only
