Description
Brand - DODGE

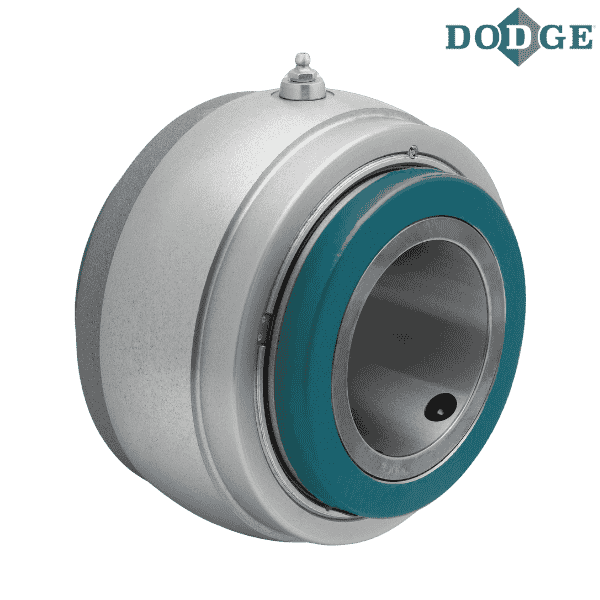

Item Number - 023715 DODGE - S1U-DI-125M
Category - DOUBLE-INTERLOCK - Metric (“S-1” Units)
Shaft Size (mm) - 125
Part Name - S1U-DI-125M
Approximate Weight (lbs) - 85
Approximate Weight (kg) - 38.55532

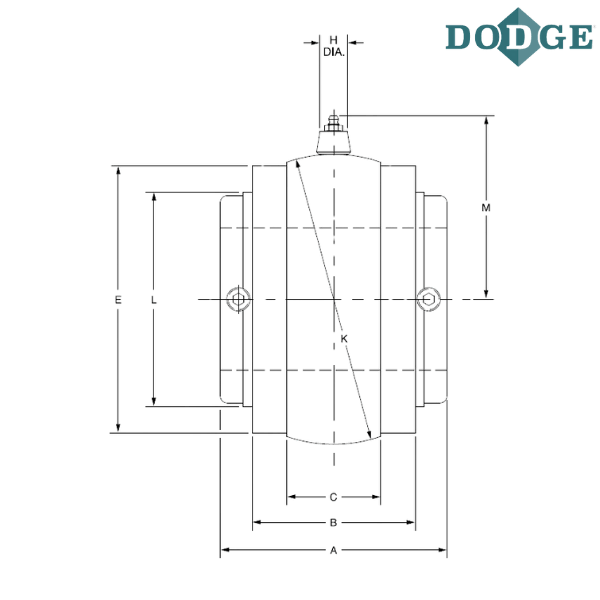

A (mm) - 7.25
B (mm) - 5.125
C (mm) - 2.875
E (Machine Side) mm - 9.563
E (Cast Side) mm - 9.625
H (mm) - 0.313
K ** (mm) - 10.184
L (mm) - 7.438
M (mm) - 6.26
Notes :
S1U - S-1, Unit Cast Iron
DI - DOUBLE-INTERLOCK
M - Millimeter
** +/-.0005”
*** Images are for representation purposes only
