Description
Brand - DODGE

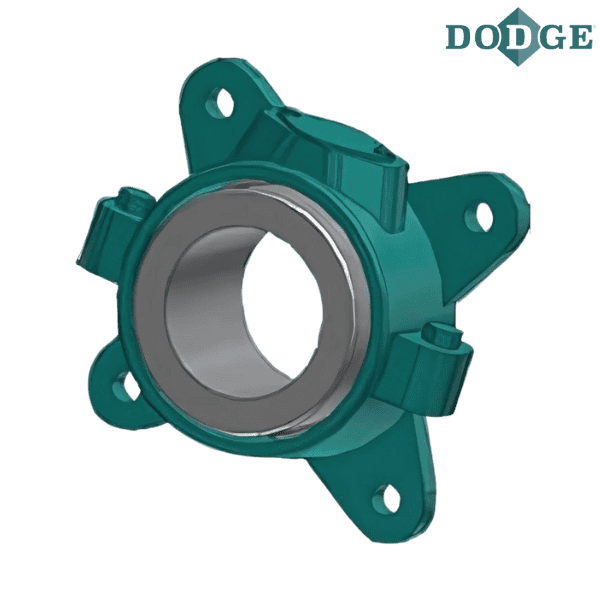

Item Number - 032923 DODGE - F4B-MM7-315
Category - Sleeve Bearings - SOLIDLUBE MM 4-Bolt Flange Bearings (700 Series)
Shaft Size (inch) - 3.9375
Description - F4B-MM7-315
Weight (lbs) - 26

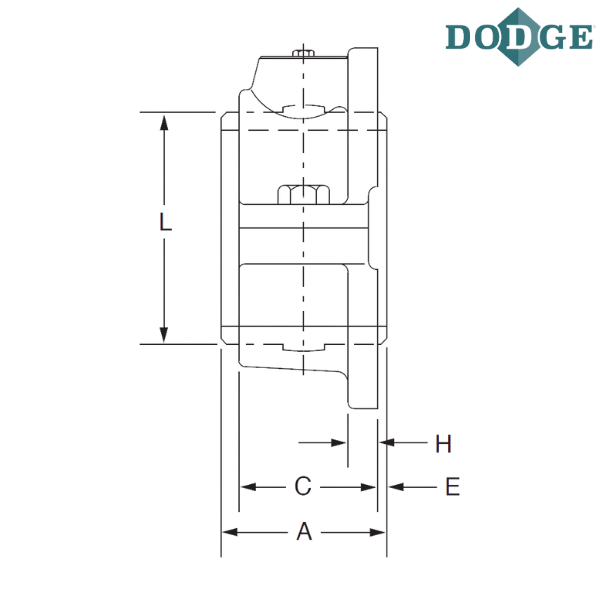

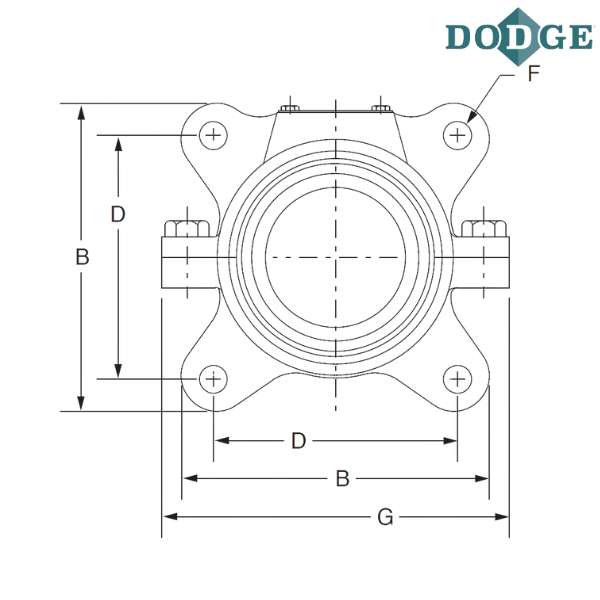

Length Through Bore (A) inch - 4
Overall Length (B) inch - 8.875
C (inch) - 3.34375
Bolt Center to Center Length (D) inch - 6.875
E (inch) - 0.25
F-Bolt Diameter (inch) - 0.75
G (inch) - 9.5
H (inch) - 0.6875
L (inch) - 5.625
Notes :
F4B - Flange, 4 Bolt
MM7 - SOLIDLUBE MM700 Series
315 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch
** Images are for representation purposes only
