032957 DODGE - P2B-LTB7-203

Brand - DODGE
Item Number - 032957 DODGE - P2B-LTB7-203
Category - Sleeve Bearings - SOLIDLUBE (700 Series)
Series - 211
Shaft Size (inch) - 2.1875
Description - P2B-LTB7-203
Weight (lbs) - 6.5
Used on Frame - LD-40

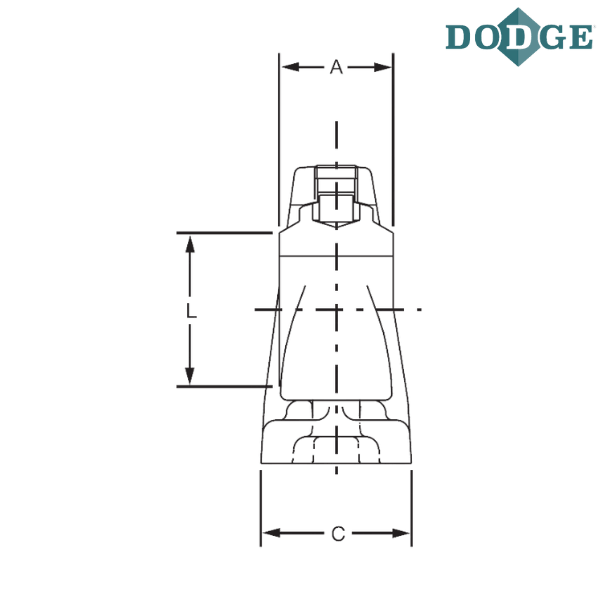

Length Through Bore (A) inch - 1.75

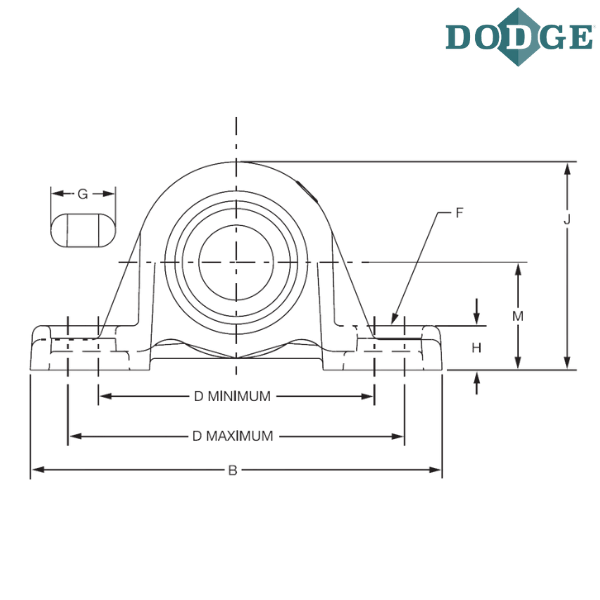

Overall Length (B) inch - 8.875
Width (C) inch - 2.3125
Bolt to Bolt Minimum Distance (D min) inch - 6.375
Bolt to Bolt Maximum Distance (D max) inch - 7.4375
F-Bolt Diameter (inch) - 0.625
G (inch) - 1.21875
H (inch) - 0.8125
Overall Height (J) inch - 4.90625
L (inch) - 3.125
Base to Center Height (M) inch - 2.4375

Notes :

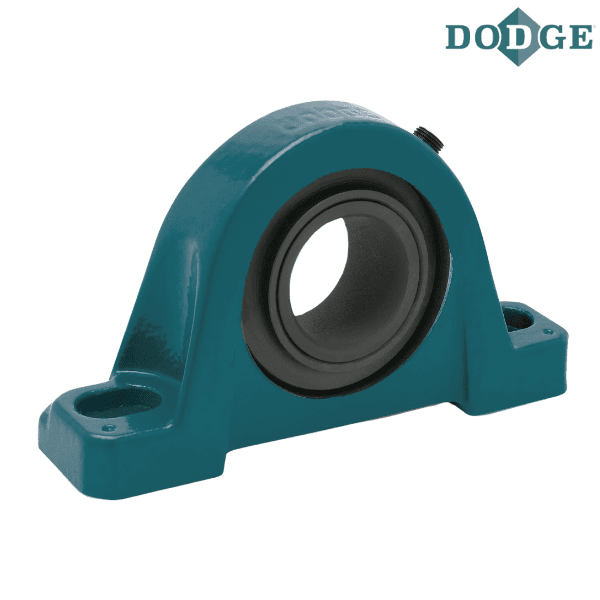

P2B - Pillow Block, 2 Bolt Base
LTB7 - SOLIDLUBE Lower Backing Height On Pillow Blocks For LT700 Series
203 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

** Images are for representation purposes only
