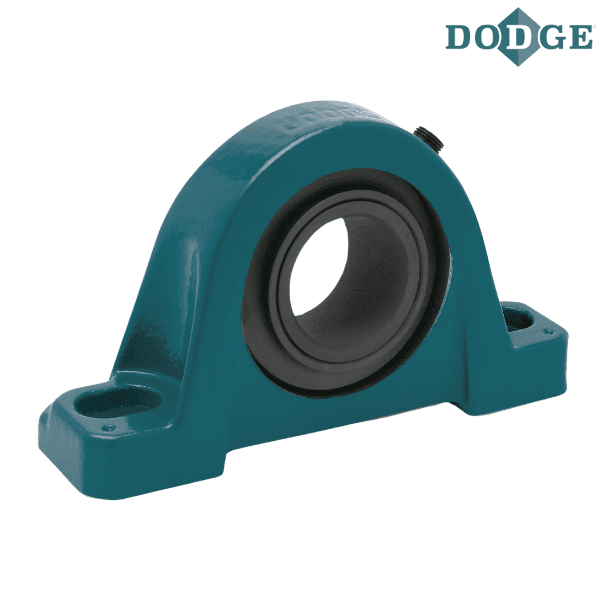

032984 DODGE - P2B-LTB10-112

Brand - DODGE
Item Number - 032984 DODGE - P2B-LTB10-112
Category - Sleeve Bearings - SOLIDLUBE (1000 Series)
Series - 209
Shaft Size (inch) - 1.75
Description - P2B-LTB10-112
Weight (lbs) - 4.8
Used on Frame - LD-20

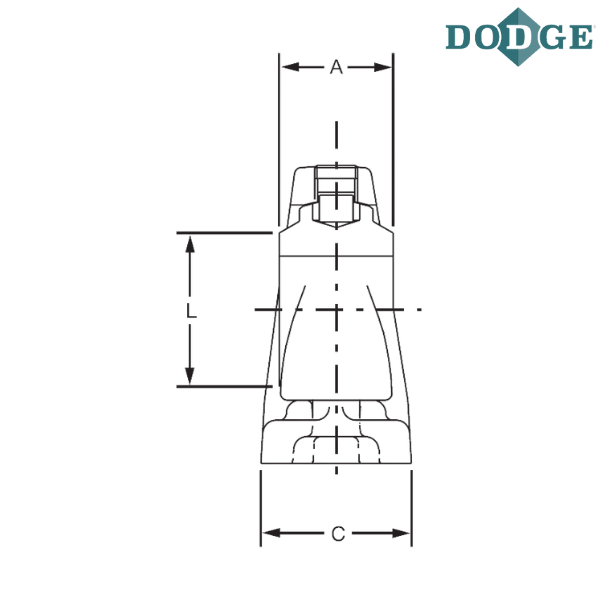

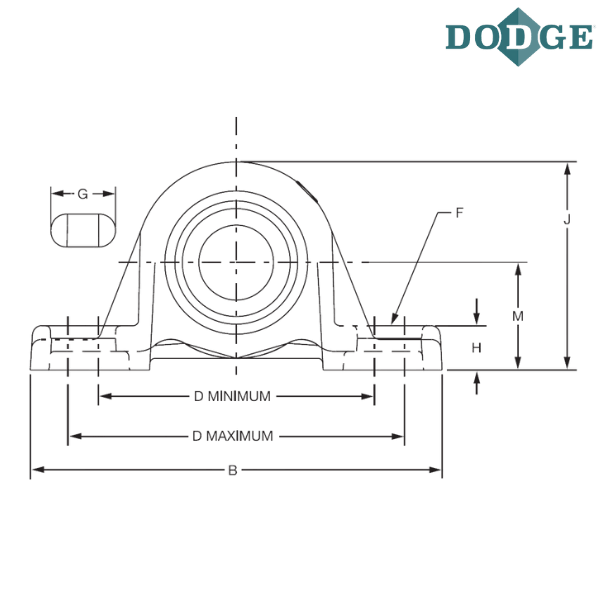

Length Through Bore (A) inch - 1.5625
Overall Length (B) inch - 7.4375
Width (C) inch - 2
Bolt to Bolt Minimum Distance (D min) inch - 5.5
Bolt to Bolt Maximum Distance (D max) inch - 6.1875
F-Bolt Diameter (inch) - 0.5
G (inch) - 0.90625
H (inch) - 0.6875
Overall Height (J) inch - 4.21875
L (inch) - 2.5625
Base to Center Height (M) inch - 2.0625

Notes :
P2B - Pillow Block, 2 Bolt Base
LTB10 - SOLIDLUBE Lower Backing Height On Pillow Blocks For LT1000 Series
112 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

** Images are for representation purposes only
