Description
Brand - DODGE
Item Number - 033205 DODGE - F4B-LT10-103
Category - Sleeve Bearings - SOLIDLUBE LT 4-Bolt Flange Bearing (1000 Series)
Series - 206
Shaft Size (inch) - 1.1875
Description - F4B-LT10-103
Weight (lbs) - 2.8

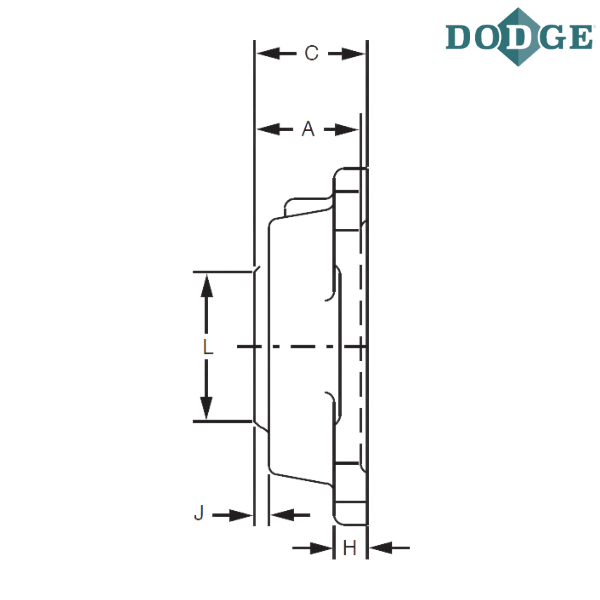

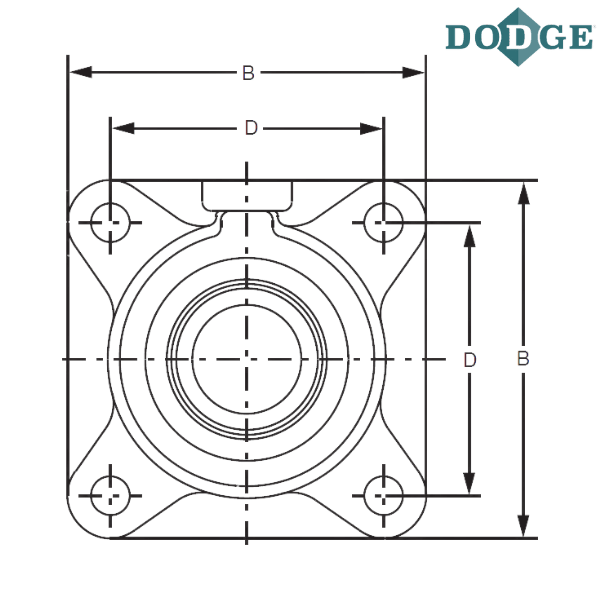

Length Through Bore (A) inch - 0.96875
Overall Length (B) inch - 4.25
Thickness (C) inch - 1.21875
Bolt Center to Center Length (D) inch - 3.25
F-Bolt Diameter (inch) - 0.4375
H (inch) - 0.5
J (inch) - 0.15625
L (inch) - 0.15625
Notes :
F4B - Flange, 4 Bolt
LT10 - SOLIDLUBE LT 1000 Series
103 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch
** Images are for representation purposes only
