Description
Brand - DODGE
Item Number - 033272 DODGE - F4B-LT7-115
Category - Sleeve Bearings - SOLIDLUBE LT 4-Bolt Flange Bearing (700 Series)
Series - 210
Shaft Size (inch) - 1.9375
Description - F4B-LT7-115
Weight (lbs) - 6.8

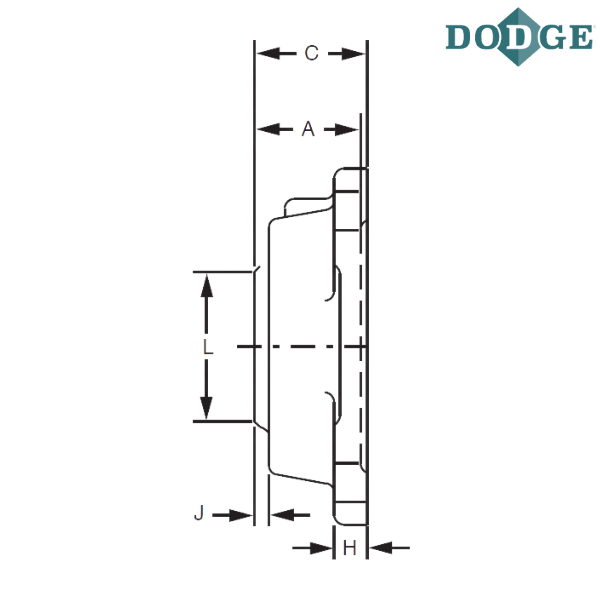

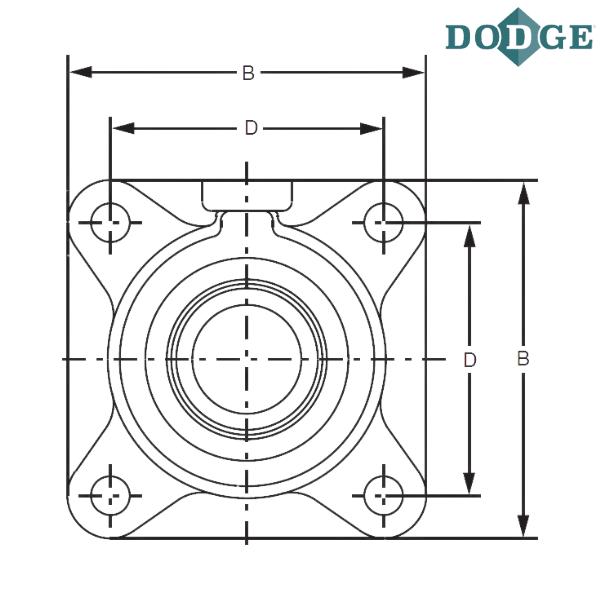

Length Through Bore (A) inch - 1.40625
Overall Length (B) inch - 5.625
Thickness (C) inch - 1.65625
Bolt Center to Center Length (D) inch - 4.375
F-Bolt Diameter (inch) - 0.5
H (inch) - 0.625
J (inch) - 0.21875
L (inch) - 0.21875
Notes :
F4B - Flange, 4 Bolt
LT7 - SOLIDLUBE LT700 Series
115 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch
** Images are for representation purposes only
