Description
Brand - DODGE
Item Number - 033323 DODGE - F4B-MM7-307

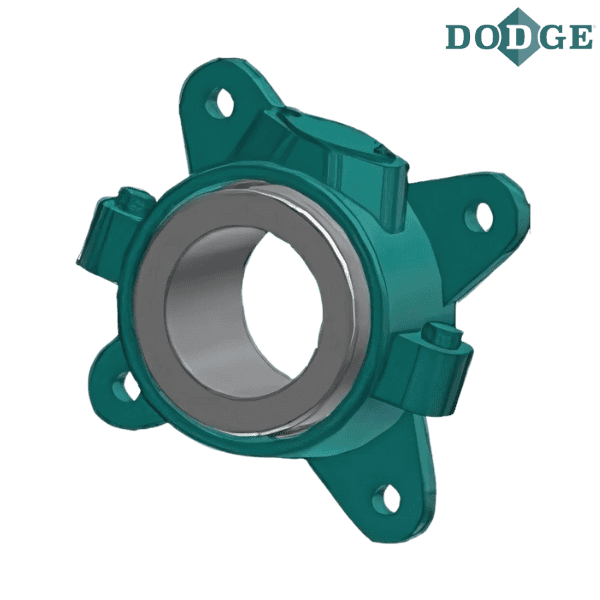

Category - Sleeve Bearings - SOLIDLUBE MM 4-Bolt Flange Bearings (700 Series)
Shaft Size (inch) - 3.4375
Description - F4B-MM7-307
Weight (lbs) - 17

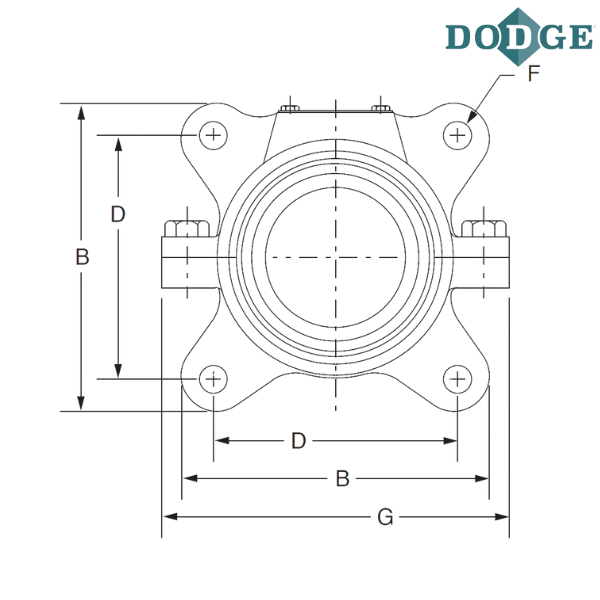

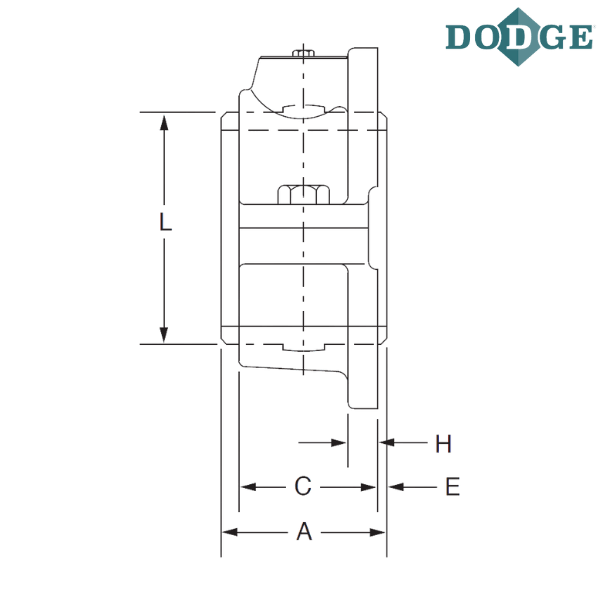

Length Through Bore (A) inch - 3.5
Overall Length (B) inch - 7.625
C (inch) - 2.921875
Bolt Center to Center Length (D) inch - 6
E (inch) - 0.1875
F-Bolt Diameter (inch) - 0.625
G (inch) - 8.5625
H (inch) - 0.625
L (inch) - 4.875
Notes :
F4B - Flange, 4 Bolt
MM7 - SOLIDLUBE MM700 Series
307 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch
** Images are for representation purposes only
