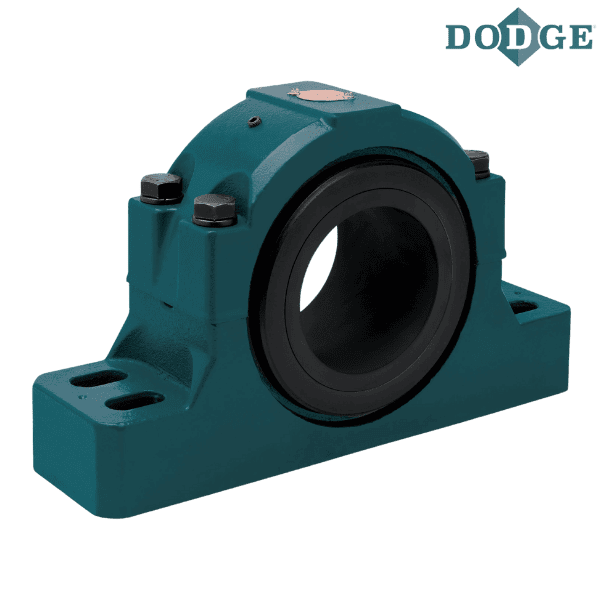

033490 DODGE - P2B-MM10-400

Brand - DODGE
Item Number - 033490 DODGE - P2B-MM10-400
Category - Sleeve Bearings - SOLIDLUBE MM Pillow Blocks (1000 Series)
Shaft Size (inch) - 4
Description - P2B-MM10-400
Weight (lbs) - 35.8
Used On Frame - HD-300

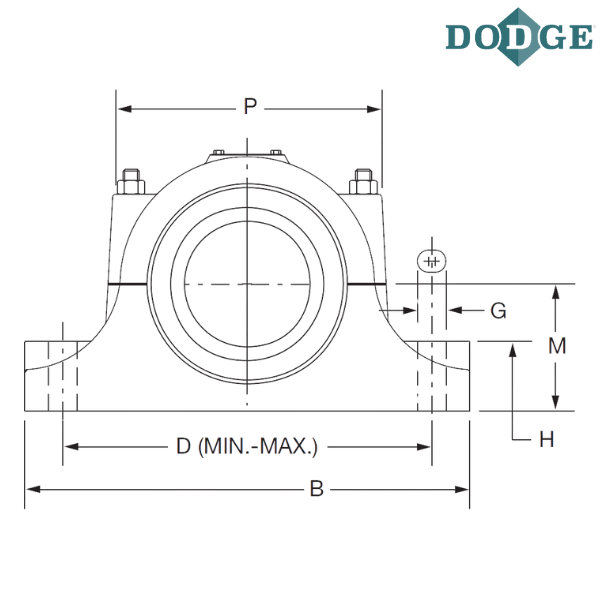

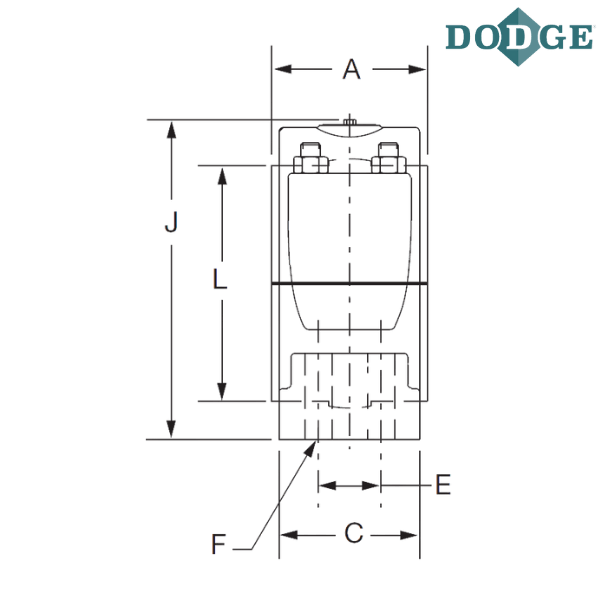

Length Through Bore (A) inch - 4
Overall Length (B) inch - 13.4375
Thickness (C) inch - 3.1875
Bolt to Bolt Minimum Distance (D min) inch - 9.875
Bolt to Bolt Maximum Distance (D max) inch - 11.5
F-Bolt Diameter (inch) - 0.75
G (inch) - 1.6875
H (inch) - 2
J (inch) - 7.9375
L (inch) - 5.625
Base to Center Height (M) inch - 3.75
P (inch) - 8.1875

Notes :
P2B - Pillow Block, 2 Bolt Base
MM10 - SOLIDLUBE MM1000 Series
400 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

** Images are for representation purposes only
