Description

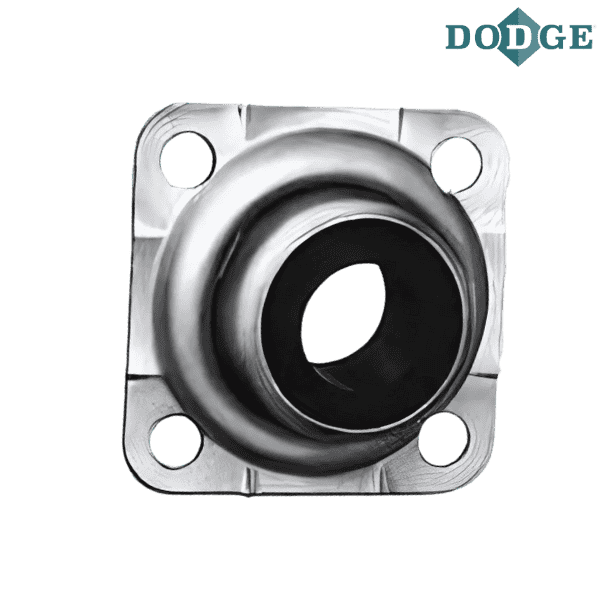

Brand - DODGE
Item Number - 033698 DODGE - F4B-LM8-104
Category - Sleeve Bearings - SOLIDLUBE LM800 4-Bolt Flange Bearing
Shaft Size (inch) - 1.25
Description - F4B-LM8-104
Weight (lbs) - 0.5

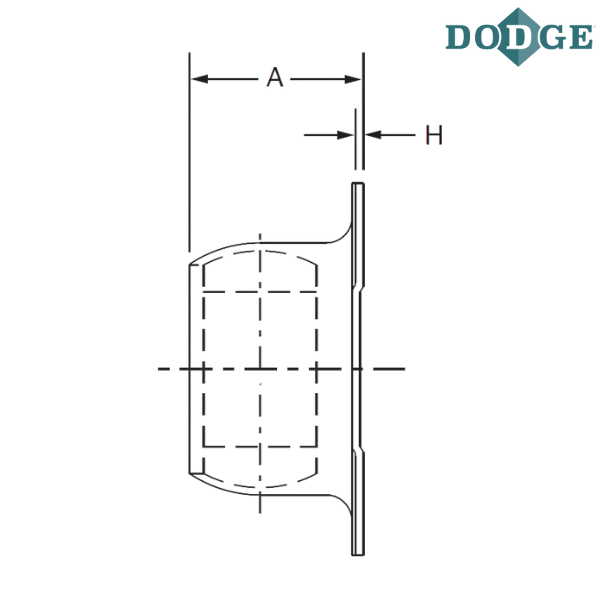

A (inch) - 1.6875

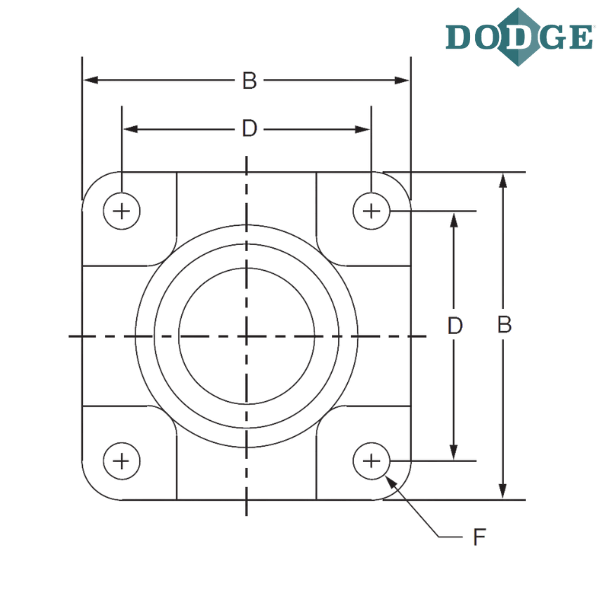

Overall Length (B) inch - 3.625
Bolt Center to Center Length (D) inch - 2.75
F-Bolt Diameter (inch) - 0.375
H (inch) - 0.0625
Notes :
F4B - Flange, 4 Bolt
LM8 - SOLIDLUBE LM800 Series
104 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch
** Images are for representation purposes only
