Description
Brand - DODGE
Item Number - 033751 DODGE - TP-GLT10-200

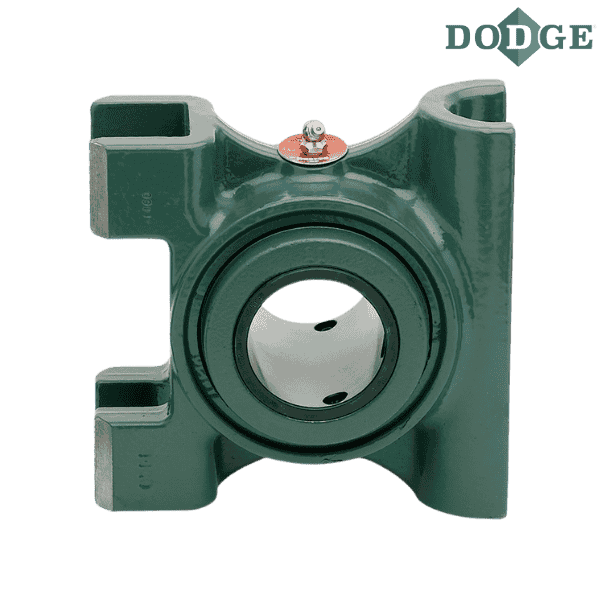

Category - Sleeve Bearings - Type GLT SOLIDLUBE Take-Up Bearings (1000 Series)
Shaft Size (inch) - 2
Description - TP-GLT10-200
Weight (lbs) - 10.1
Frame Size - TP10

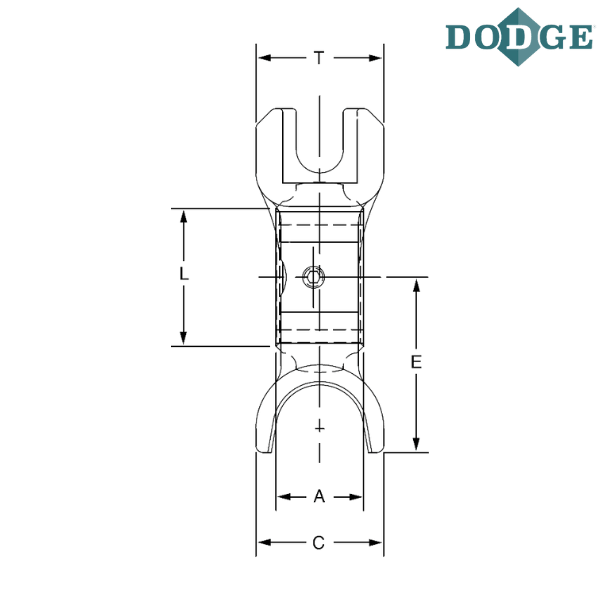

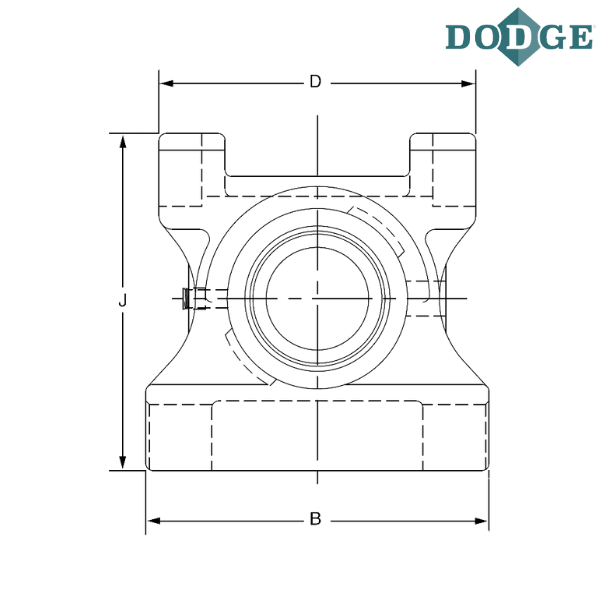

Length Through Bore (A) inch - 1.625
Overall Length (B) inch - 6.5
C (inch) - 2.375
D (inch) - 6
E (inch) - 3.25
J (inch) - 6.375
L (inch) - 2.8125
T (inch) - 2.375
** Images are for representation purposes only
