Description
Brand - DODGE
Item Number - 033752 DODGE - TP-GLT10-203
Category - Sleeve Bearings - Type GLT SOLIDLUBE Take-Up Bearings (1000 Series)
Shaft Size (inch) - 2.1875
Description - TP-GLT10-203
Weight (lbs) - 11.8
Frame Size - TP20

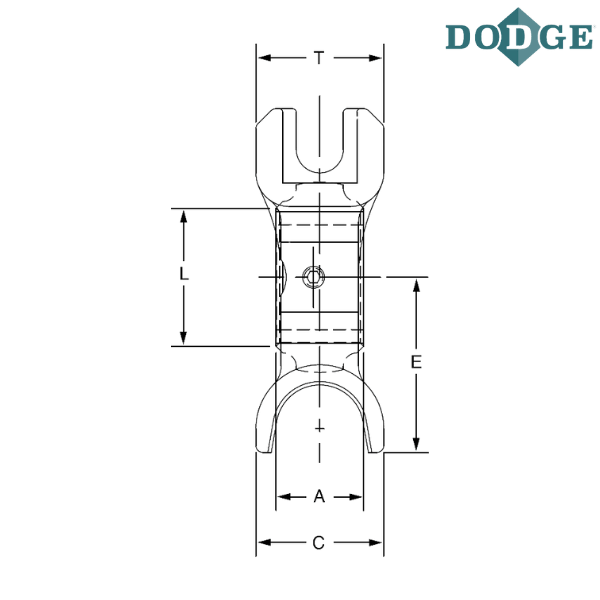

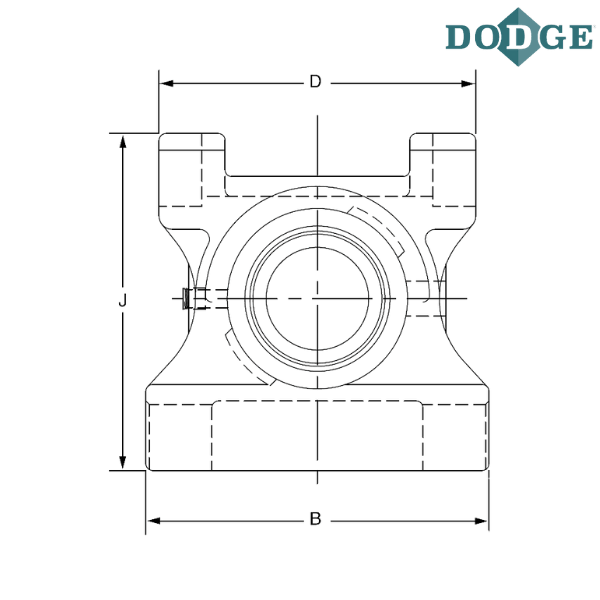

Length Through Bore (A) inch - 1.75
Overall Length (B) inch - 7
C (inch) - 2.5
D (inch) - 6.75
E (inch) - 3.375
J (inch) - 6.875
L (inch) - 3.125
T (inch) - 2.375

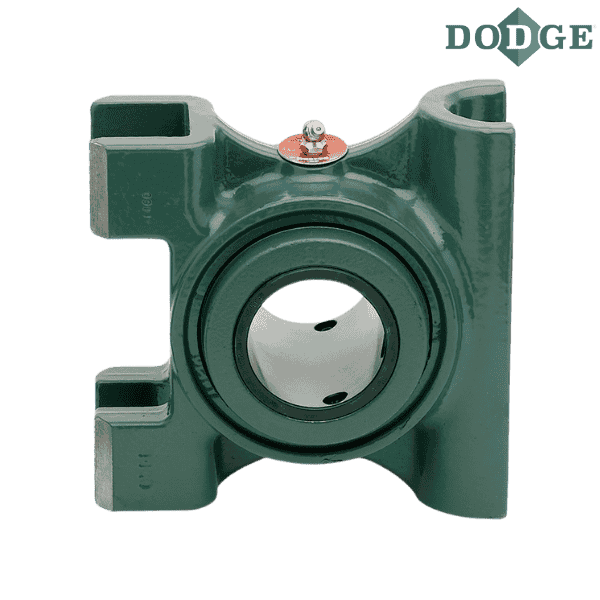

** Images are for representation purposes only
