033840 DODGE - NSTU-LT10-012

Brand - DODGE
Item Number - 033840 DODGE - NSTU-LT10-012
Category - Sleeve Bearings - SOLIDLUBE LT Narrow Slot Take-Up Bearings (LT1000)
Series - 204
Shaft Size (inch) - 0.75
Description - NSTU-LT10-012
Weight (lbs) - 1.7
Used On Frame - NS-210

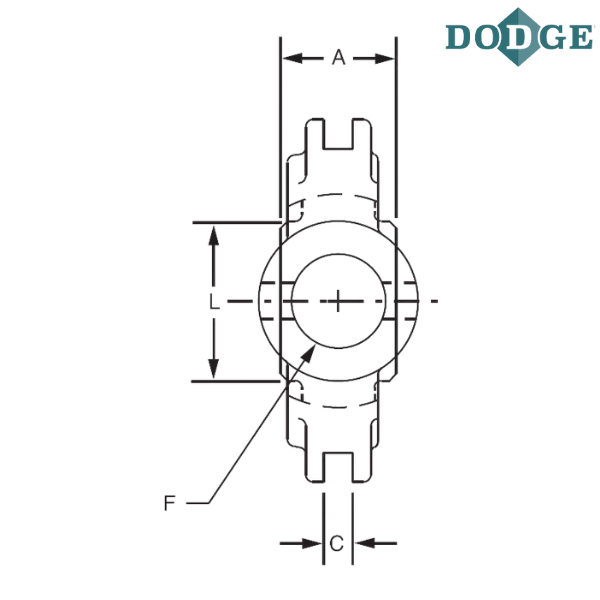

Length Through Bore (A) inch - 1

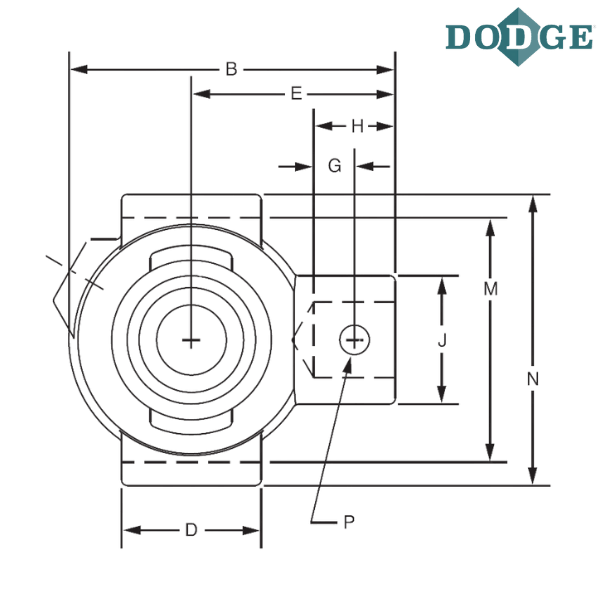

Overall Length (B) inch - 3.5
C (inch) - 0.25
D (inch) - 1.5
E (inch) - 2.1875
F (Screw Diameter) inch - 0.75
G (inch) - 0.4375
H (inch) - 0.875
J (inch) - 1.375
L (inch) - 1.375
M (inch) - 2.625
Overall Width (N) inch - 3.125
Pin Diameter (P) inch - 0.3125

Notes :
NSTU - Narrow Slot Take-Up
LT10 - SOLIDLUBE LT 1000 Series
012 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

** Images are for representation purposes only
