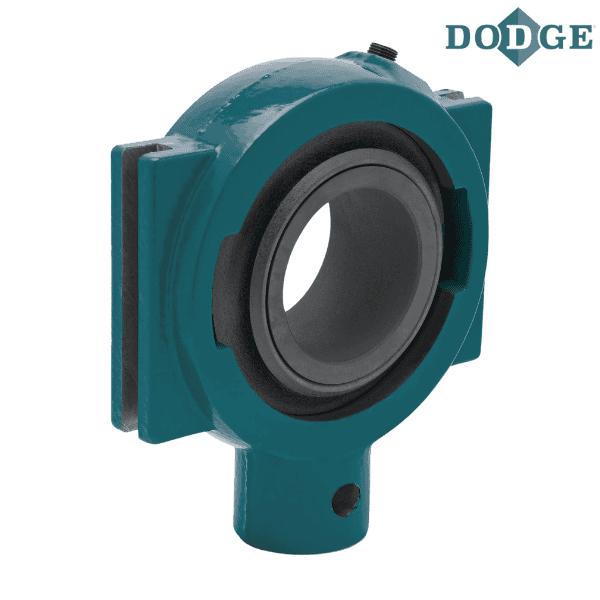

033856 DODGE - NSTU-LT10-208

Brand - DODGE
Item Number - 033856 DODGE - NSTU-LT10-208
Category - Sleeve Bearings - SOLIDLUBE LT Narrow Slot Take-Up Bearings (LT1000)
Series - 212
Shaft Size (inch) - 2.5
Description - NSTU-LT10-208
Weight (lbs) - 7
Used On Frame - NS-415

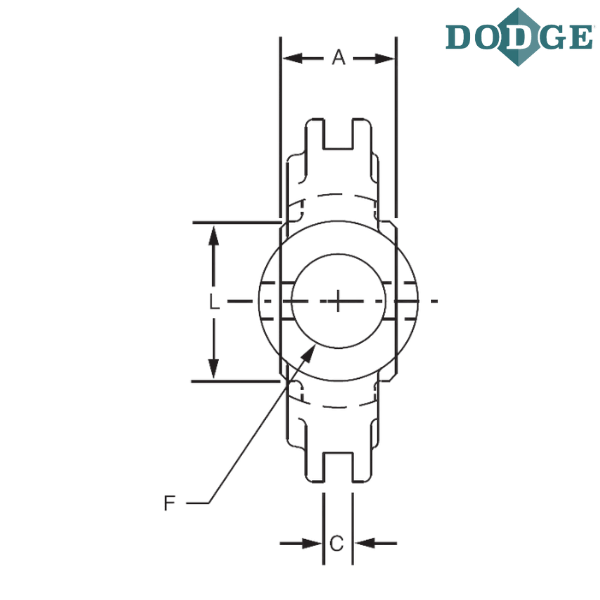

Length Through Bore (A) inch - 1.8125

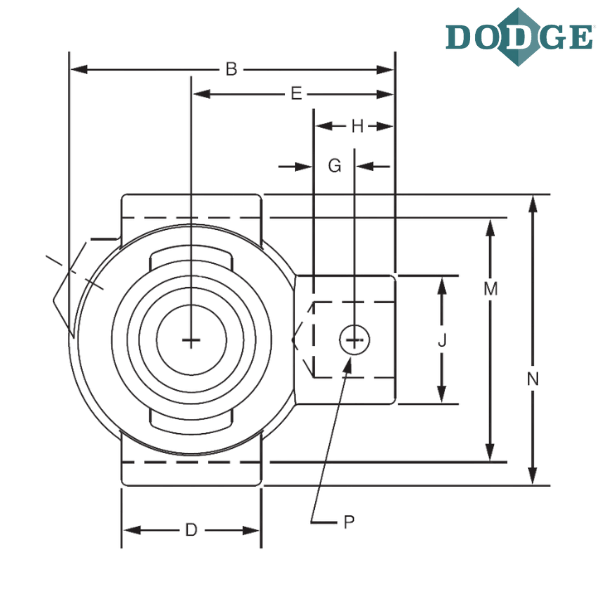

Overall Length (B) inch - 6.6875
C (inch) - 0.3125
D (inch) - 3.75
E (inch) - 3.875
F (Screw Diameter) inch - 1
G (inch) - 0.5937
H (inch) - 1.28125
J (inch) - 1.75
L (inch) - 3.125
M (inch) - 4.4375
Overall Width (N) inch - 5.375
Pin Diameter (P) inch - 0.4375

Notes :
NSTU - Narrow Slot Take-Up
LT10 - SOLIDLUBE LT 1000 Series
208 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

** Images are for representation purposes only
