Description
Brand - DODGE
Item Number - 033862 DODGE - F4B-MM7-407

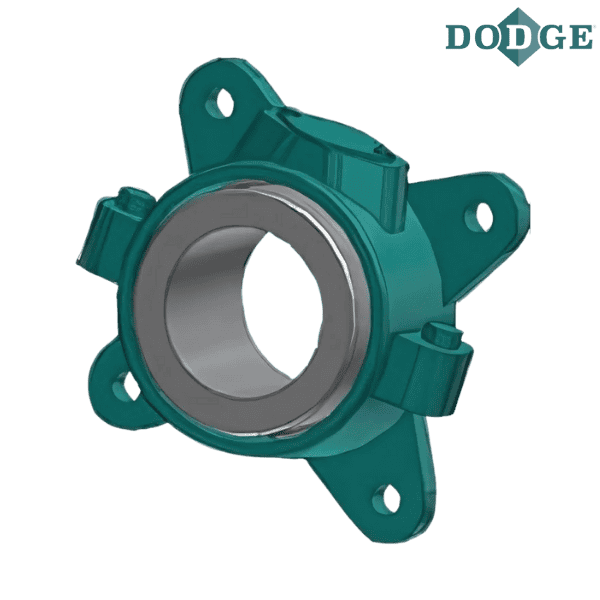

Category - Sleeve Bearings - SOLIDLUBE MM 4-Bolt Flange Bearings (700 Series)
Shaft Size (inch) - 4.4375
Description - F4B-MM7-407
Weight (lbs) - 42

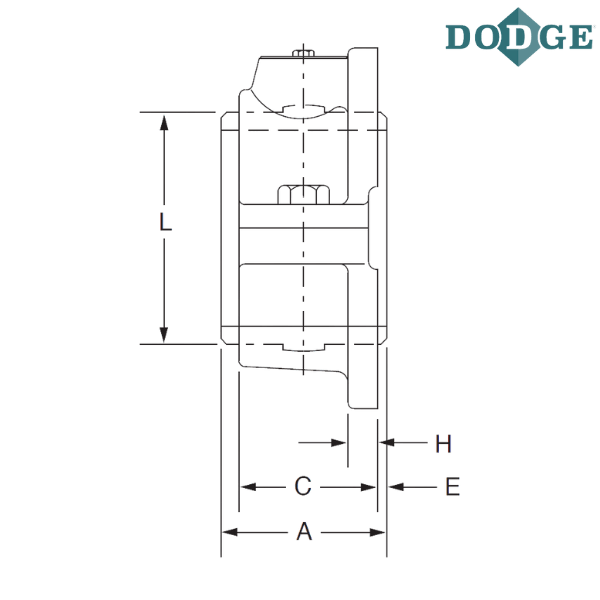

Length Through Bore (A) inch - 4.5

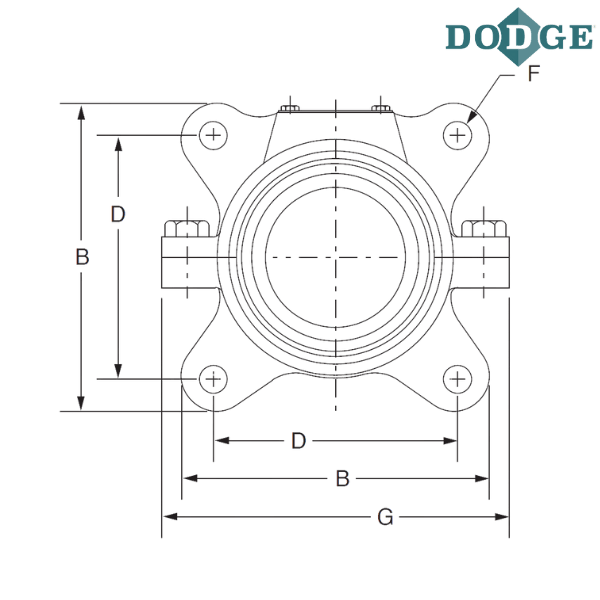

Overall Length (B) inch - 10.25
C (inch) - 3.71875
Bolt Center to Center Length (D) inch - 8.125
E (inch) - 0.25
F-Bolt Diameter (inch) - 0.875
G (inch) - 11.375
H (inch) - 0.75
L (inch) - 6.9375
Notes :
F4B - Flange, 4 Bolt
MM7 - SOLIDLUBE MM700 Series
407 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch
** Images are for representation purposes only
