Description
Brand - DODGE
Item Number - 033869 DODGE - F4B-MM10-415

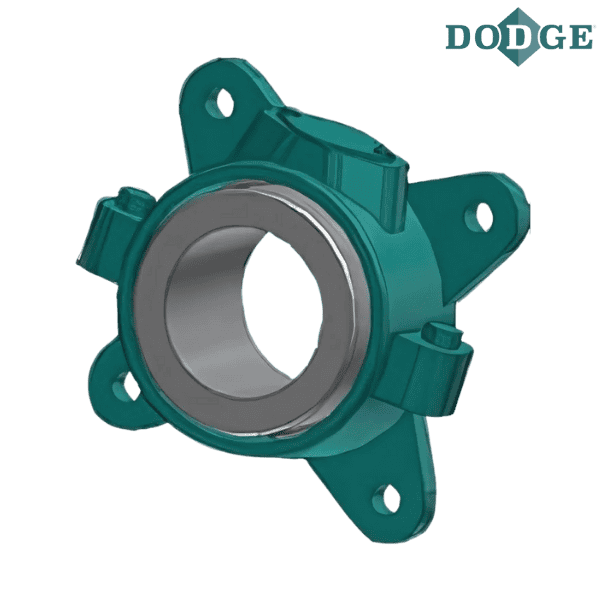

Category - Sleeve Bearings - SOLIDLUBE MM 4-Bolt Flange Bearings (1000 Series)
Shaft Size (inch) - 4.9375
Description - F4B-MM10-415
Weight (lbs) - 62

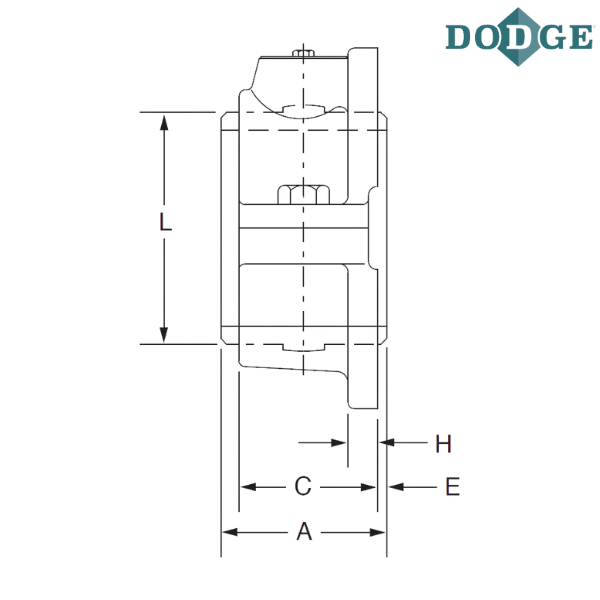

Length Through Bore (A) inch - 5

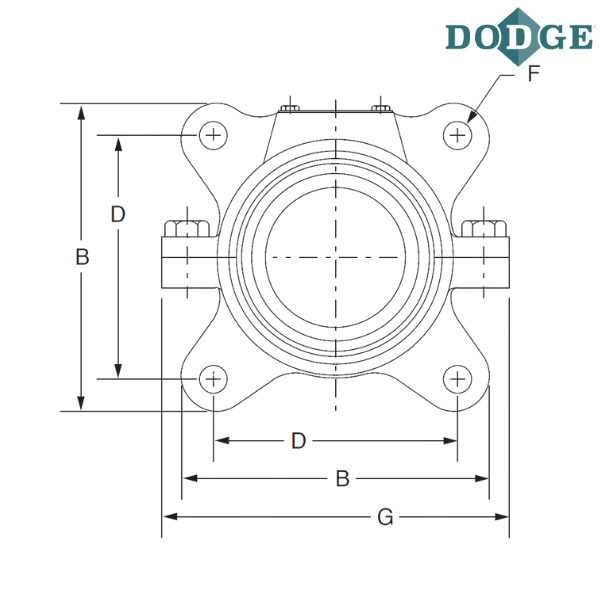

Overall Length (B) inch - 11.4375
C (inch) - 4.625
Bolt Center to Center Length (D) inch - 9.1875
E (inch) - 0.125
F-Bolt Diameter (inch) - 1
G (inch) - 12.875
H (inch) - 0.8125
L (inch) - 7.5625
Notes :
F4B - Flange, 4 Bolt
MM10 - SOLIDLUBE MM1000 Series
415 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch
** Images are for representation purposes only
