Description

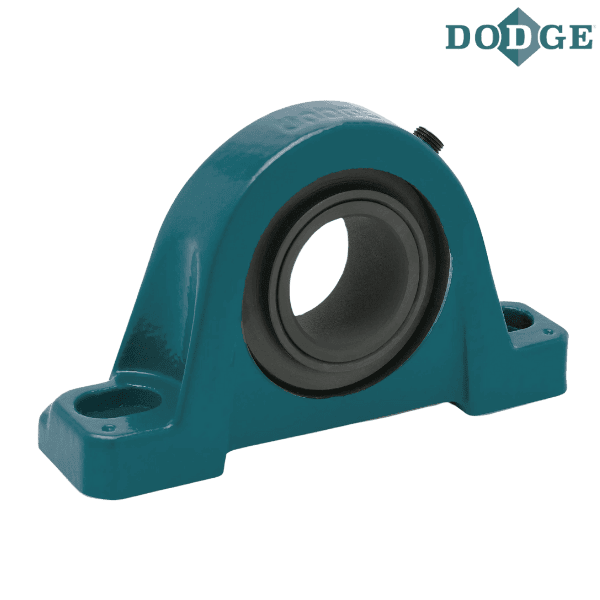

Brand - DODGE
Item Number - 034227 DODGE - P2B-LT7-30M
Category - Sleeve Bearings - SOLIDLUBE (700 Series)
Series - 206
Shaft Size (mm) - 30
Description - P2B-LT7-30M
Weight (kg) - 1.22
Used on Frame - LD-20

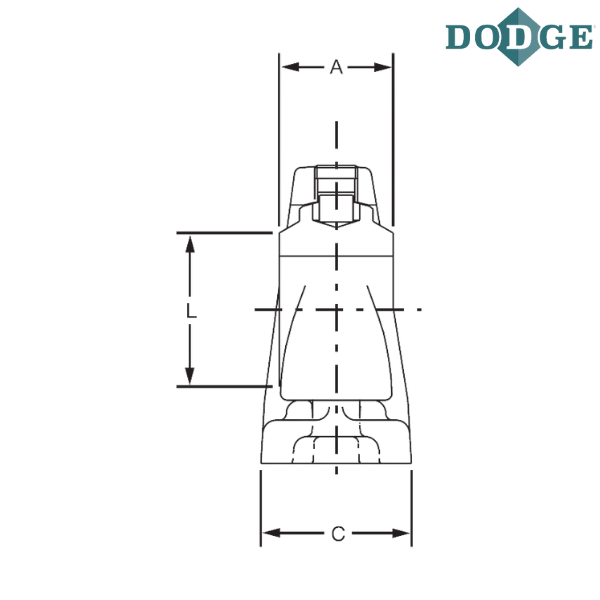

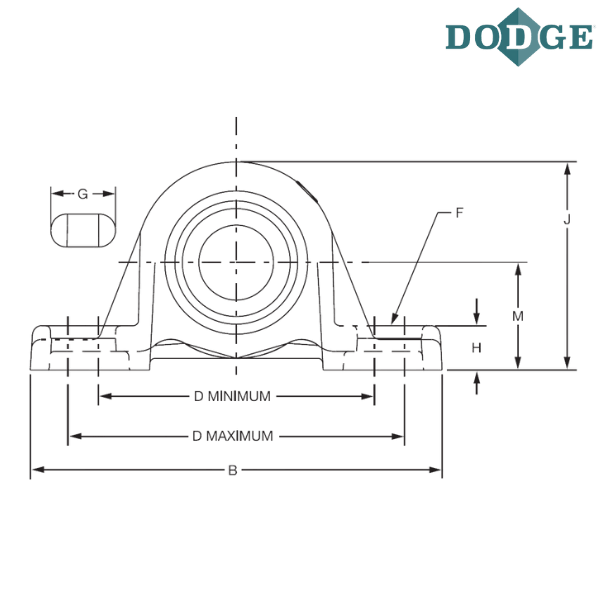

Length Through Bore (A) mm - 30.2
Overall Length (B) mm - 158.8
Width (C) mm - 44.5
Bolt to Bolt Minimum Distance (D min) mm - 108
Bolt to Bolt Maximum Distance (D max) mm - 127
F-Bolt Diameter (mm) - 12
G (mm) - 23.8
H (mm) - 17.5
Overall Height (J) mm - 82.6
L (mm) - 46
Base to Center Height (M) mm - 41.3
Notes :
P2B - Pillow Block, 2 Bolt Base
LT7 - SOLIDLUBE LT700 Series
30M - First Two Digit: Bore In Millimeters
M : Indicates Metric Dimension
** Images are for representation purposes only
