Description
Brand - DODGE
Item Number - 034230 DODGE - P2B-LT7-45M
Category - Sleeve Bearings - SOLIDLUBE (700 Series)
Series - 209
Shaft Size (mm) - 45
Description - P2B-LT7-45M
Weight (kg) - 2.63
Used on Frame - LD-20
Length Through Bore (A) mm - 39.7
Overall Length (B) mm - 188.9
Width (C) mm - 50.8
Bolt to Bolt Minimum Distance (D min) mm - 139.7
Bolt to Bolt Maximum Distance (D max) mm - 157.2
F-Bolt Diameter (mm) - 12
G (mm) - 23
H (mm) - 19.1
Overall Height (J) mm - 108.7
L (mm) - 65.1
Base to Center Height (M) mm - 54
Notes :
P2B - Pillow Block, 2 Bolt Base
LT7 - SOLIDLUBE LT700 Series
45M - First Two Digit: Bore In Millimeters
M : Indicates Metric Dimension

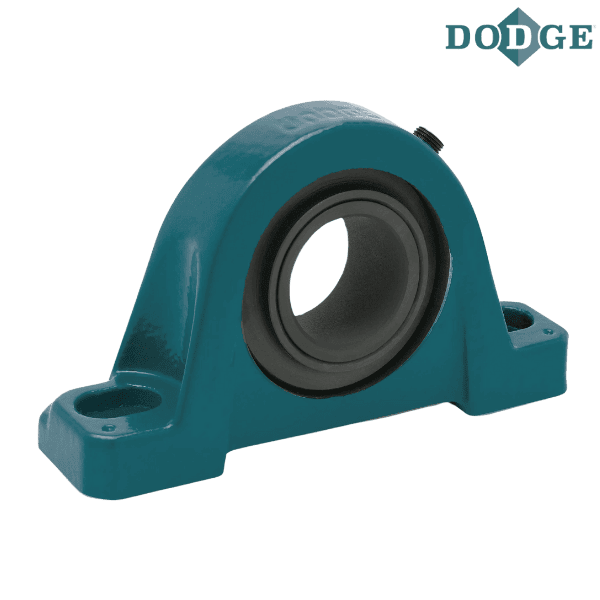

** Images are for representation purposes only
