Description
Brand - DODGE
Item Number - 034250 DODGE - P2B-LTB7-50M
Category - Sleeve Bearings - SOLIDLUBE (700 Series)
Series - 210
Shaft Size (mm) - 50
Description - P2B-LTB7-50M
Weight (kg) - 2.72
Used on Frame - LD-30

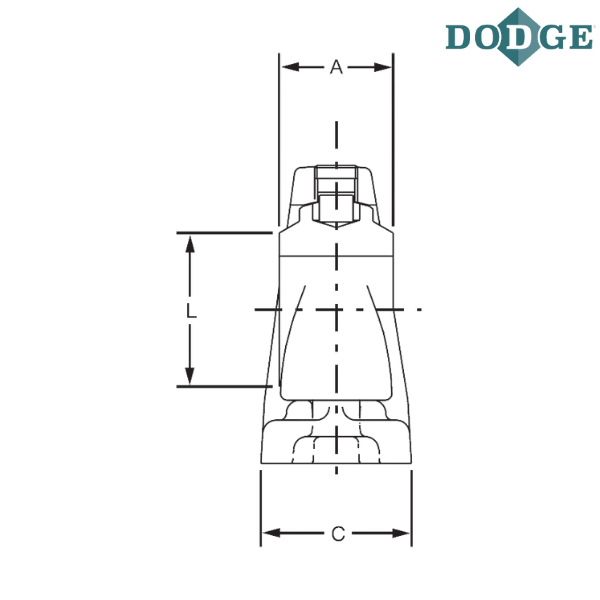

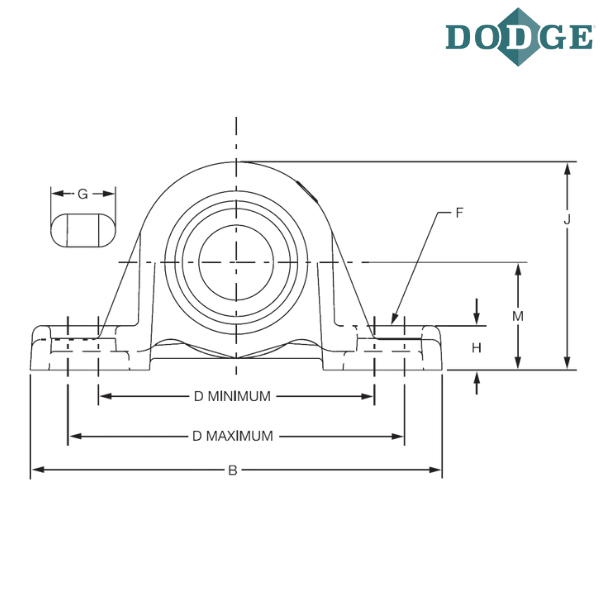

Length Through Bore (A) mm - 41.3
Overall Length (B) mm - 206.4
Width (C) mm - 57.1
Bolt to Bolt Minimum Distance (D min) mm - 152.4
Bolt to Bolt Maximum Distance (D max) mm - 170
F-Bolt Diameter (mm) - 16
G (mm) - 26.2
H (mm) - 17.5
Overall Height (J) mm - 113.5
L (mm) - 71.4
Base to Center Height (M) mm - 55.6
Notes :
P2B - Pillow Block, 2 Bolt Base
LTB7 - SOLIDLUBE Lower Backing Height On Pillow Blocks For LT700 Series
50M - First Two Digit: Bore In Millimeters
M : Indicates Metric Dimension

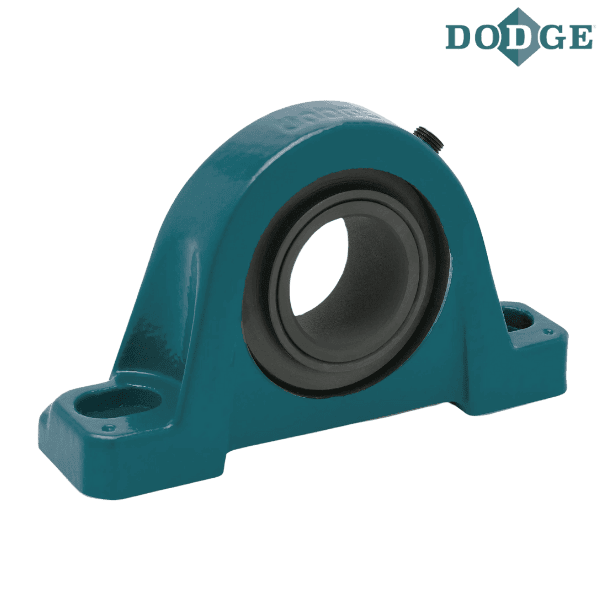

** Images are for representation purposes only
