Description

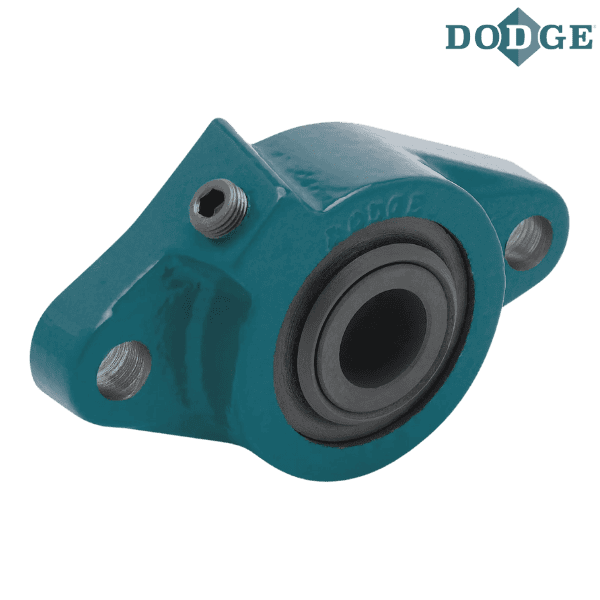

Brand - DODGE
Item Number - 034260 DODGE - F2B-LT7-20M
Category - Sleeve Bearings - SOLIDLUBE LT 2-Bolt Flange Bearing (700 Series)
Series - 204
Shaft Size (mm) - 20
Description - F2B-LT7-20M
Weight (kg) - 0.54

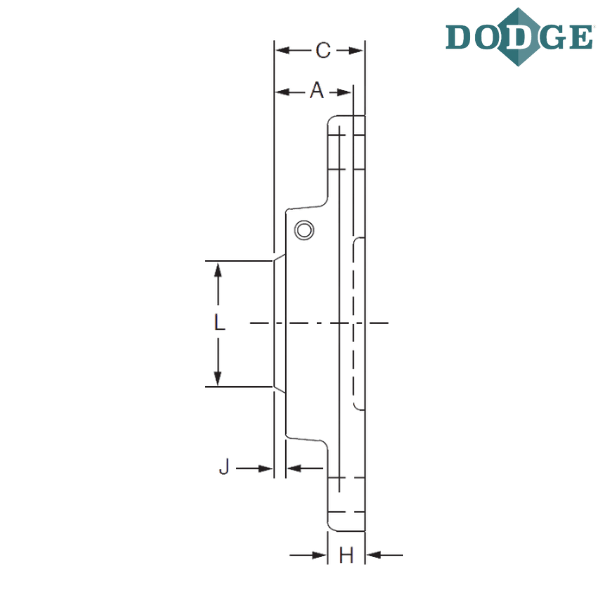

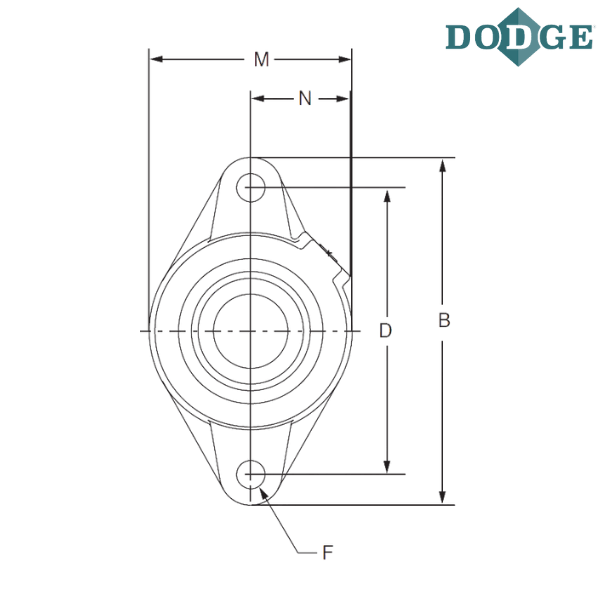

Length Through Bore (A) mm - 23
Overall Length (B) mm - 122.2
Thickness (C) mm - 28.6
Bolt Center to Center Length (D) mm - 89.7
F-Bolt Diameter (inch) - 0.375
H (mm) - 12.7
J (mm) - 4
L (mm) - 34.9
Overall Width (M) mm - 60.3
N (mm) - 38.1
Notes :
F2B - Flange, 2 Bolt
LT7 - SOLIDLUBE LT700 Series
20M - First Two Digit: Bore In Millimeters
M : Indicates Metric Dimension
** Images are for representation purposes only
