Description
Brand - DODGE
Item Number - 034261 DODGE - F2B-LT7-25M
Category - Sleeve Bearings - SOLIDLUBE LT 2-Bolt Flange Bearing (700 Series)
Series - 205
Shaft Size (mm) - 25
Description - F2B-LT7-25M
Weight (kg) - 0.68

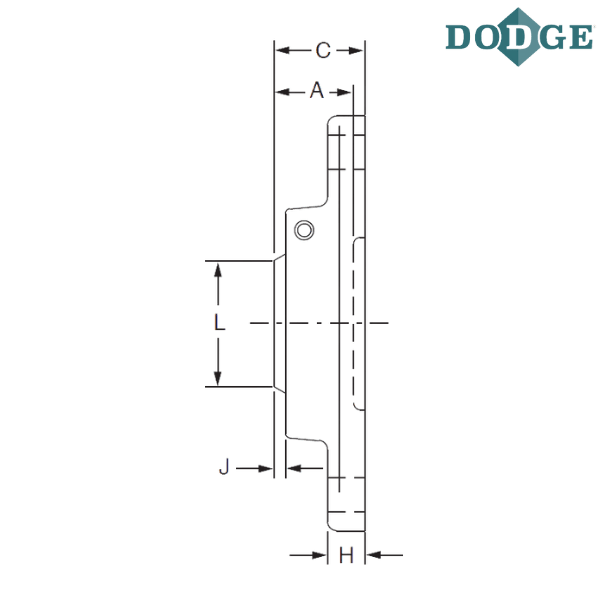

Length Through Bore (A) mm - 25.4

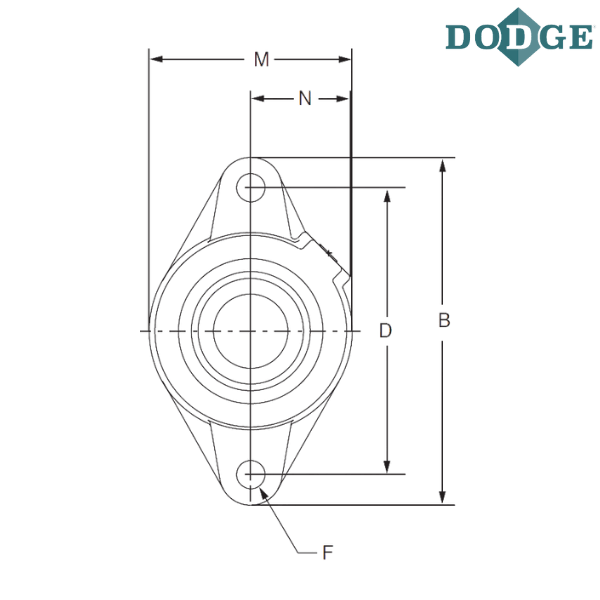

Overall Length (B) mm - 123.8
Thickness (C) mm - 28.6
Bolt Center to Center Length (D) mm - 98.8
F-Bolt Diameter (inch) - 0.4375
H (mm) - 12.7
J (mm) - 4
L (mm) - 39.7
Overall Width (M) mm - 69.9
N (mm) - 36.5
Notes :
F2B - Flange, 2 Bolt
LT7 - SOLIDLUBE LT700 Series
25M - First Two Digit: Bore In Millimeters
M : Indicates Metric Dimension

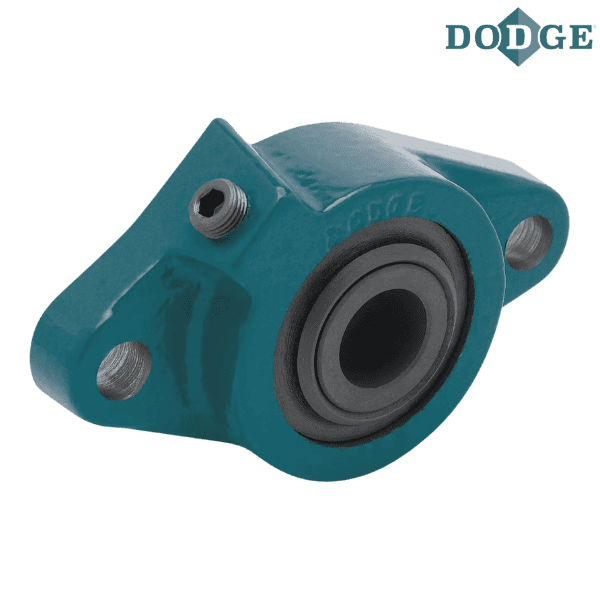

** Images are for representation purposes only
