Description
Brand - DODGE
Item Number - 034264 DODGE - F2B-LT7-45M

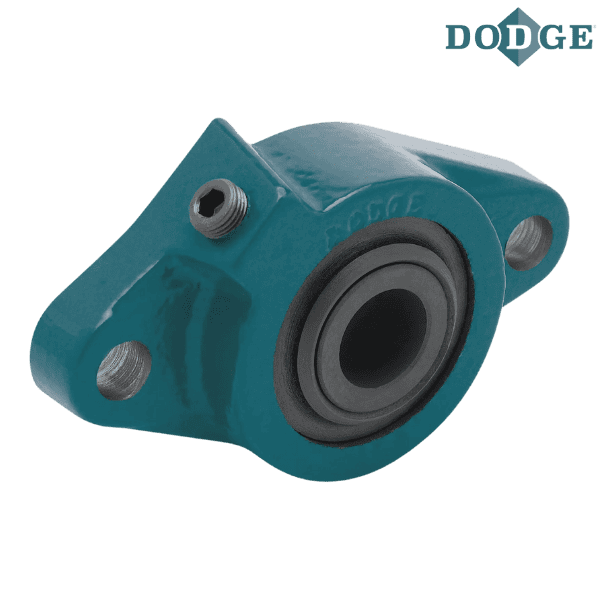

Category - Sleeve Bearings - SOLIDLUBE LT 2-Bolt Flange Bearing (700 Series)
Series - 209
Shaft Size (mm) - 45
Description - F2B-LT7-45M
Weight (kg) - 2.13

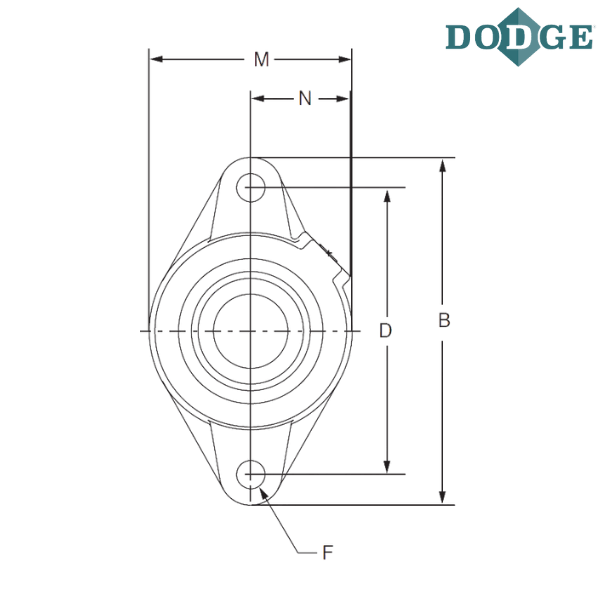

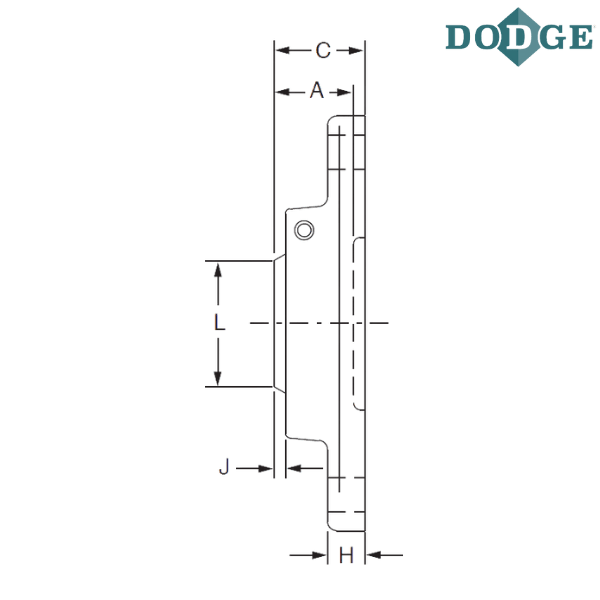

Length Through Bore (A) mm - 33.7
Overall Length (B) mm - 179.4
Thickness (C) mm - 40.5
Bolt Center to Center Length (D) mm - 148.4
F-Bolt Diameter (inch) - 0.5
H (mm) - 15.9
J (mm) - 4.8
L (mm) - 65.1
Overall Width (M) mm - 111.1
N (mm) - 48.4
Notes :
F2B - Flange, 2 Bolt
LT7 - SOLIDLUBE LT700 Series
45M - First Two Digit: Bore In Millimeters
M : Indicates Metric Dimension
** Images are for representation purposes only
