Description
Brand - DODGE
Item Number - 034272 DODGE - F2B-LT10-50M
Category - Sleeve Bearings - SOLIDLUBE LT 2-Bolt Flange Bearing (1000 Series)
Series - 210
Shaft Size (mm) - 50
Description - F2B-LT10-50M
Weight (kg) - 2.36

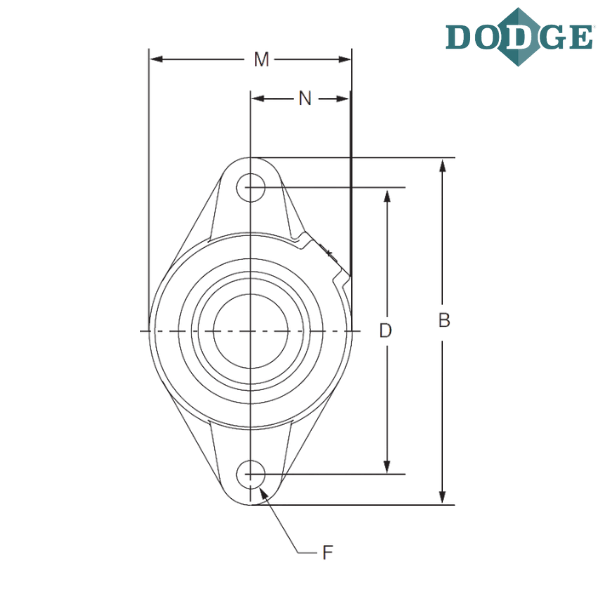

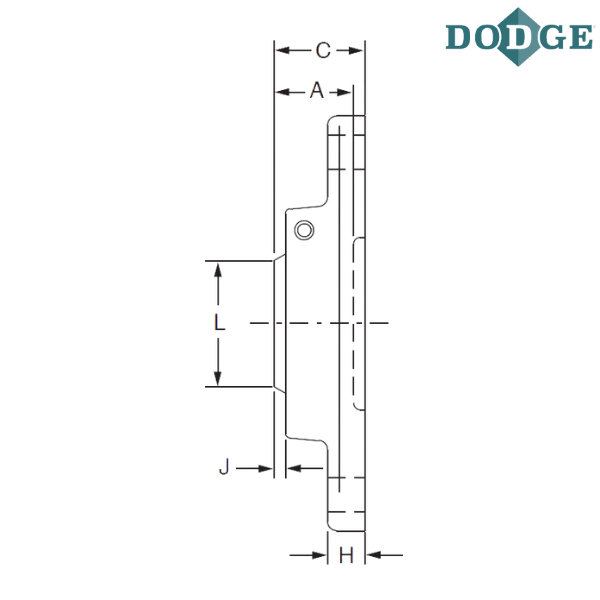

Length Through Bore (A) mm - 35.7
Overall Length (B) mm - 188.9
Thickness (C) mm - 42.1
Bolt Center to Center Length (D) mm - 157.2
F-Bolt Diameter (inch) - 0.5
H (mm) - 15.9
J (mm) - 4.8
L (mm) - 71.4
Overall Width (M) mm - 108.7
N (mm) - 51.6
Notes :
F2B - Flange, 2 Bolt
LT10 - SOLIDLUBE LT 1000 Series
50M - First Two Digit: Bore In Millimeters
M : Indicates Metric Dimension

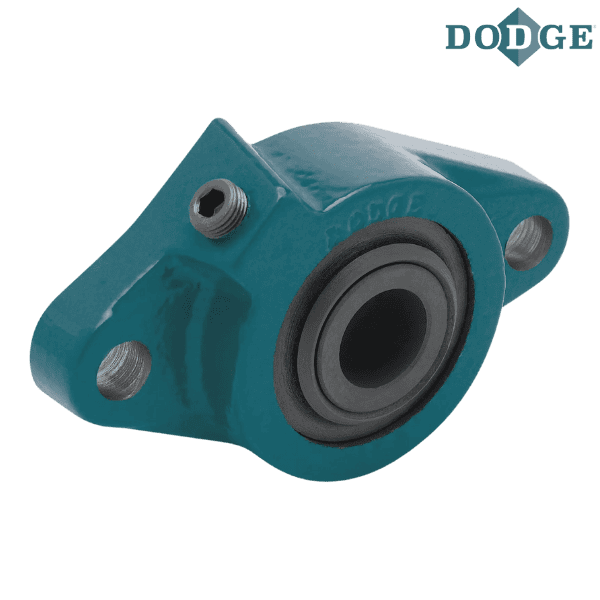

** Images are for representation purposes only
