Description
Brand - DODGE
Item Number - 034276 DODGE - F4B-LT7-35M
Category - Sleeve Bearings - SOLIDLUBE LT 4-Bolt Flange Bearing (700 Series)
Series - 207
Shaft Size (mm) - 35
Description - F4B-LT7-35M
Weight (kg) - 1.81

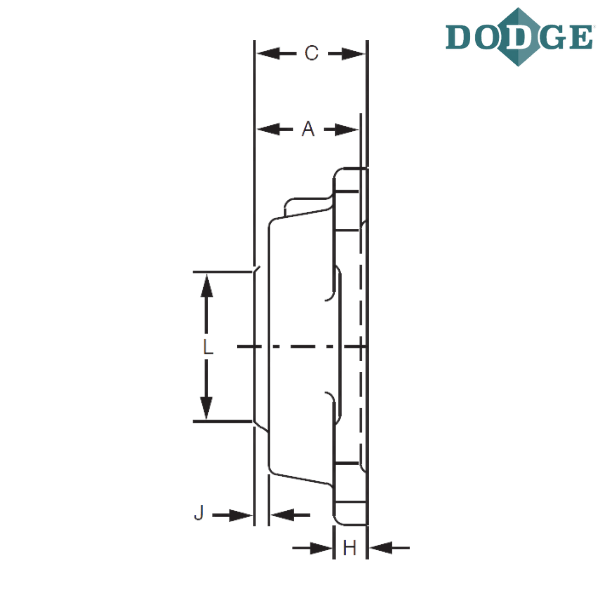

Length Through Bore (A) mm - 31

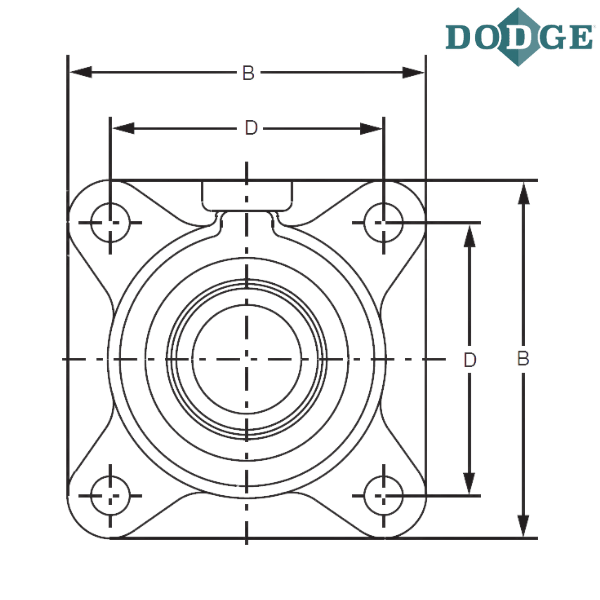

Overall Length (B) mm - 120.7
Thickness (C) mm - 34.9
Bolt Center to Center Length (D) mm - 92.1
F-Bolt Diameter (mm) - 12
H (mm) - 14.3
J (mm) - 4
L (mm) - 54
Notes :
F4B - Flange, 4 Bolt
LT7 - SOLIDLUBE LT700 Series
35M - First Two Digit: Bore In Millimeters
M : Indicates Metric Dimension

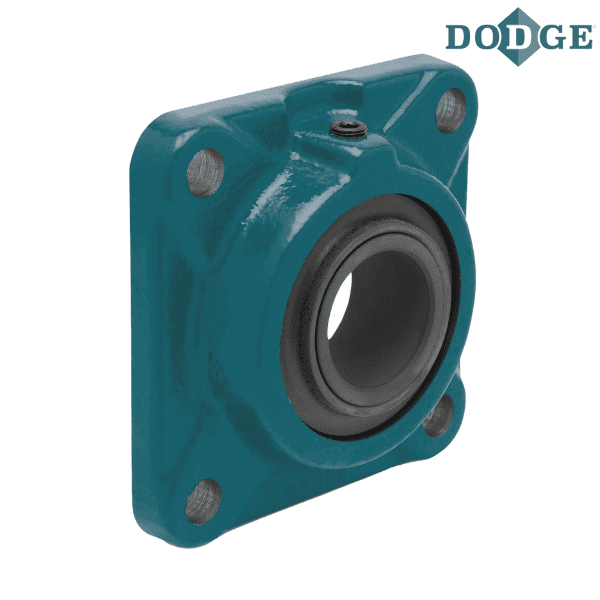

** Images are for representation purposes only
