Description
Brand - DODGE
Item Number - 034278 DODGE - F4B-LT7-45M
Category - Sleeve Bearings - SOLIDLUBE LT 4-Bolt Flange Bearing (700 Series)
Series - 209
Shaft Size (mm) - 45
Description - F4B-LT7-45M
Weight (kg) - 2.54

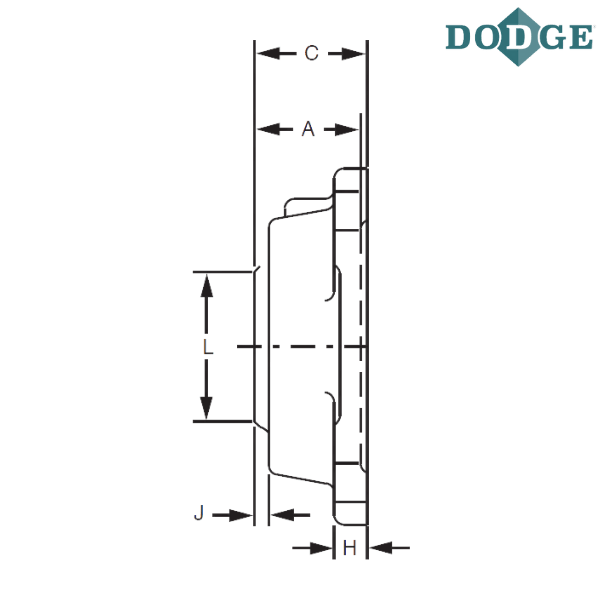

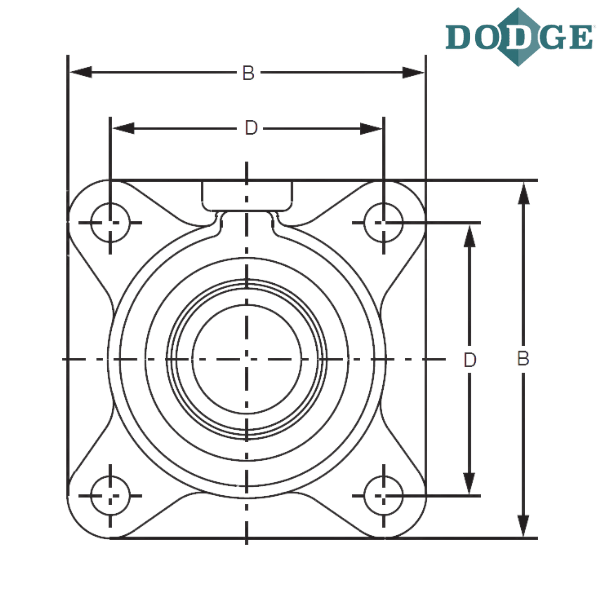

Length Through Bore (A) mm - 33.7
Overall Length (B) mm - 136.5
Thickness (C) mm - 40.5
Bolt Center to Center Length (D) mm - 104.8
F-Bolt Diameter (mm) - 12
H (mm) - 15.9
J (mm) - 4.8
L (mm) - 65.1
Notes :
F4B - Flange, 4 Bolt
LT7 - SOLIDLUBE LT700 Series
45M - First Two Digit: Bore In Millimeters
M : Indicates Metric Dimension

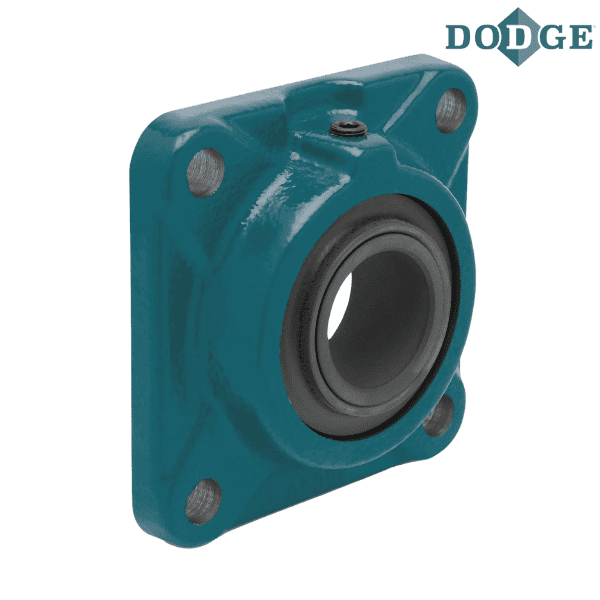

** Images are for representation purposes only
