Description
Brand - DODGE

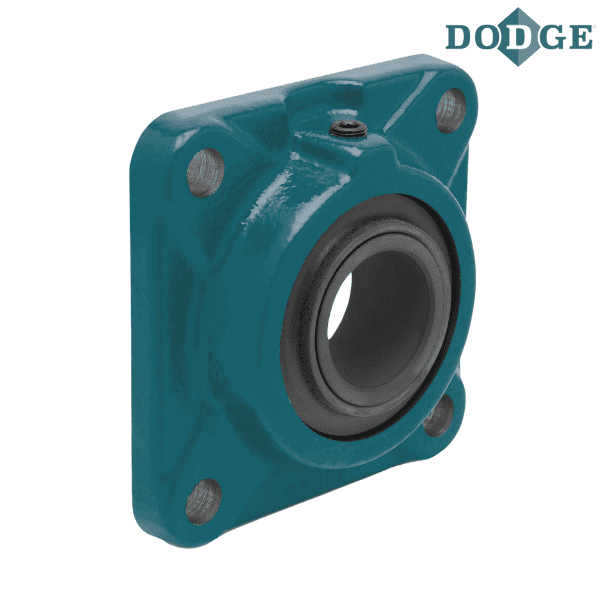

Item Number - 034279 DODGE - F4B-LT7-50M
Category - Sleeve Bearings - SOLIDLUBE LT 4-Bolt Flange Bearing (700 Series)
Series - 210
Shaft Size (mm) - 50
Description - F4B-LT7-50M
Weight (kg) - 3

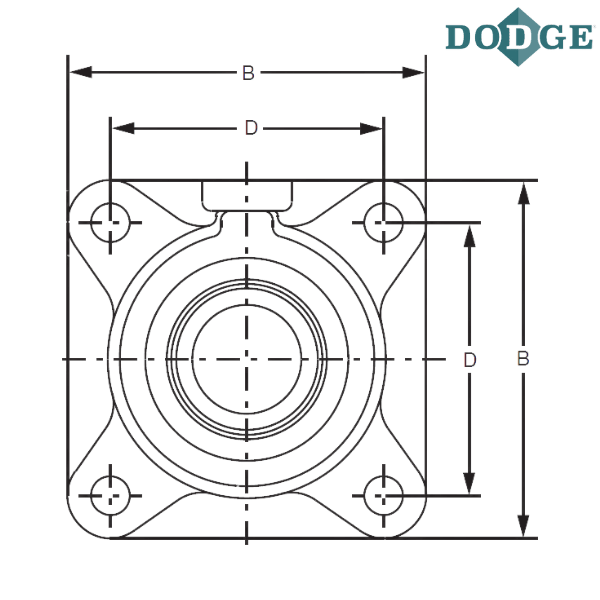

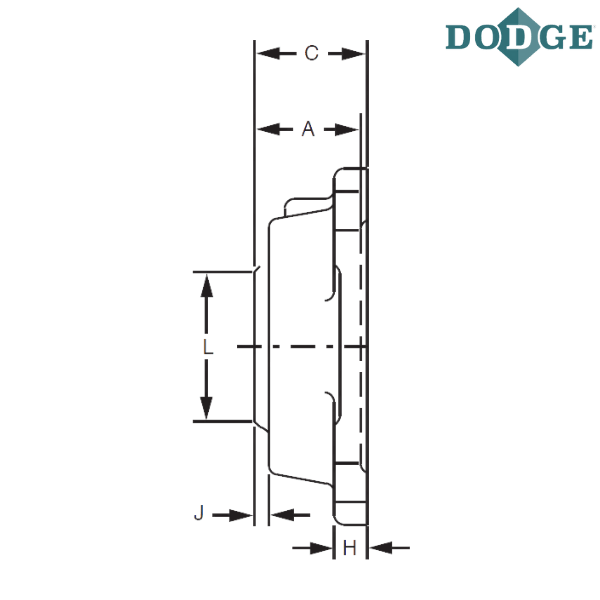

Length Through Bore (A) mm - 35.7
Overall Length (B) mm - 142.9
Thickness (C) mm - 42.1
Bolt Center to Center Length (D) mm - 111.1
F-Bolt Diameter (mm) - 12
H (mm) - 15.9
J (mm) - 4.8
L (mm) - 71.4
Notes :
F4B - Flange, 4 Bolt
LT7 - SOLIDLUBE LT700 Series
50M - First Two Digit: Bore In Millimeters
M : Indicates Metric Dimension
** Images are for representation purposes only
