Description

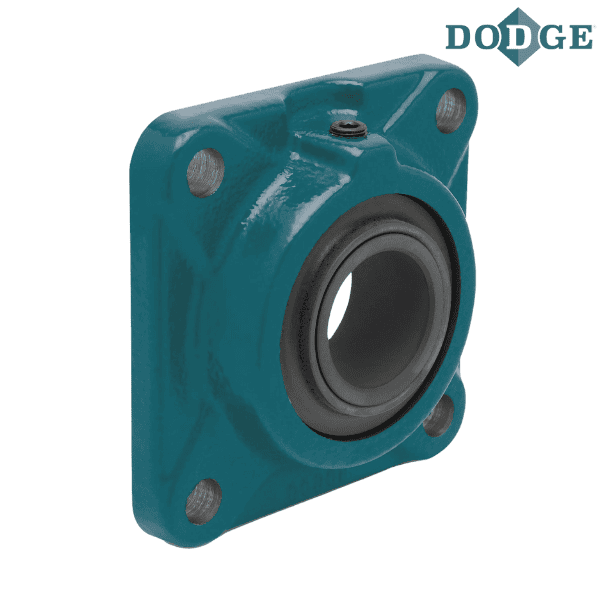

Brand - DODGE
Item Number - 034280 DODGE - F4B-LT7-60M
Category - Sleeve Bearings - SOLIDLUBE LT 4-Bolt Flange Bearing (700 Series)
Series - 212
Shaft Size (mm) - 60
Description - F4B-LT7-60M
Weight (kg) - 5

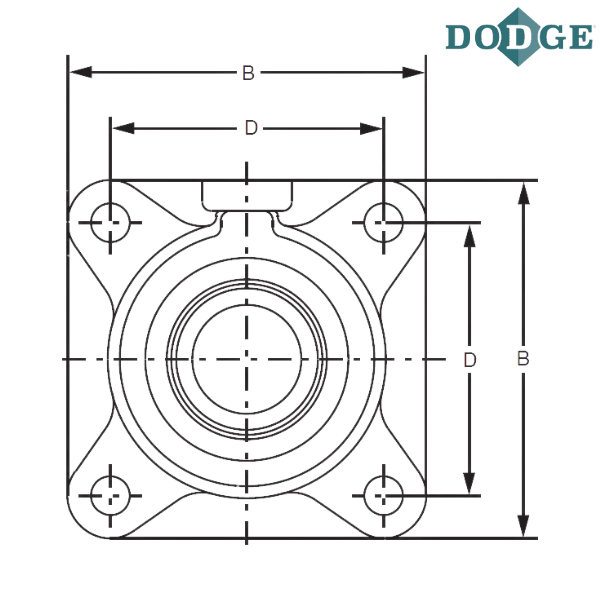

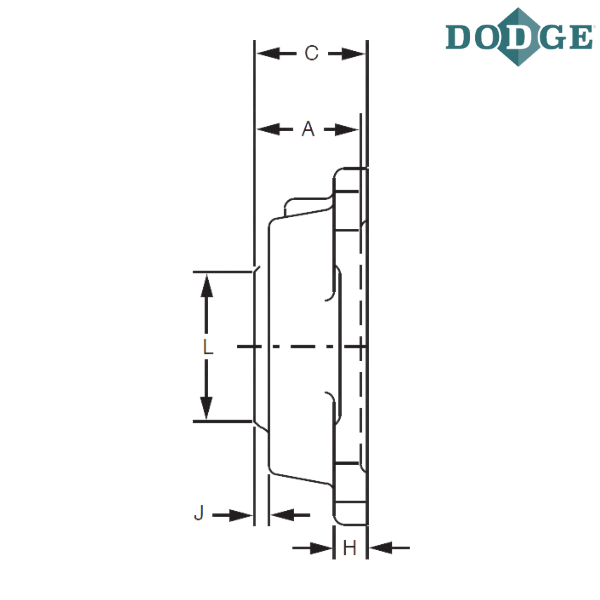

Length Through Bore (A) mm - 41.3
Overall Length (B) mm - 177.8
Thickness (C) mm - 47.6
Bolt Center to Center Length (D) mm - 142.9
F-Bolt Diameter (mm) - 16
H (mm) - 17.5
J (mm) - 4
L (mm) - 88.9
Notes :
F4B - Flange, 4 Bolt
LT7 - SOLIDLUBE LT700 Series
60M - First Two Digit: Bore In Millimeters
M : Indicates Metric Dimension
** Images are for representation purposes only
