Description
Brand - DODGE

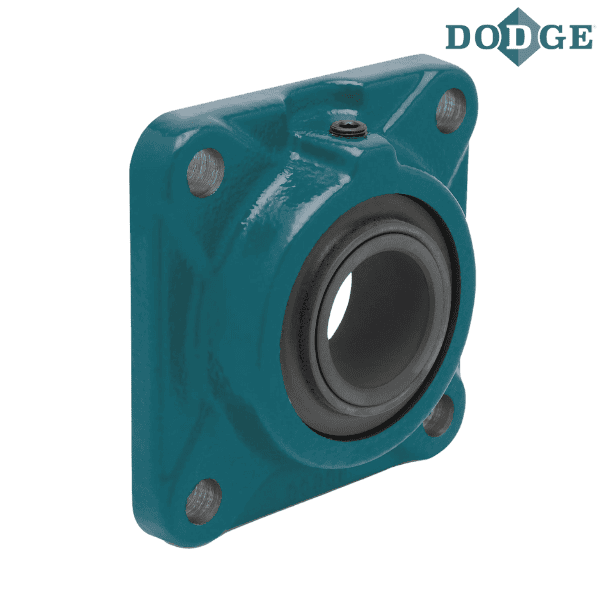

Item Number - 034292 DODGE - F4B-LT10-75M
Category - Sleeve Bearings - SOLIDLUBE LT 4-Bolt Flange Bearing (1000 Series)
Series - 215
Shaft Size (mm) - 75
Description - F4B-LT10-75M
Weight (kg) - 8.03

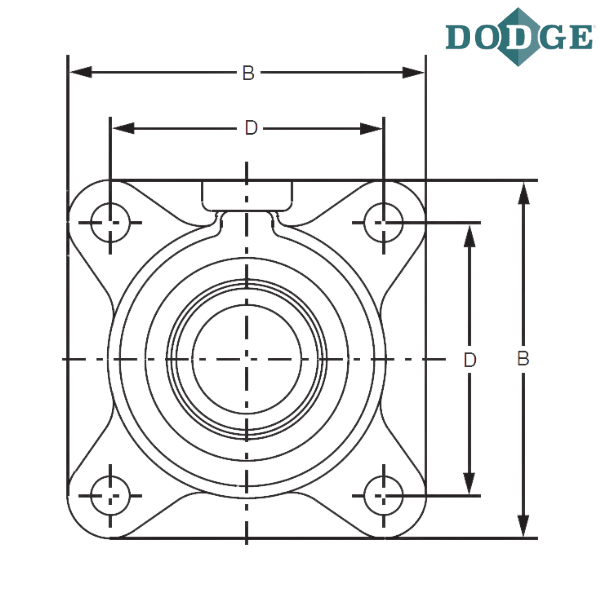

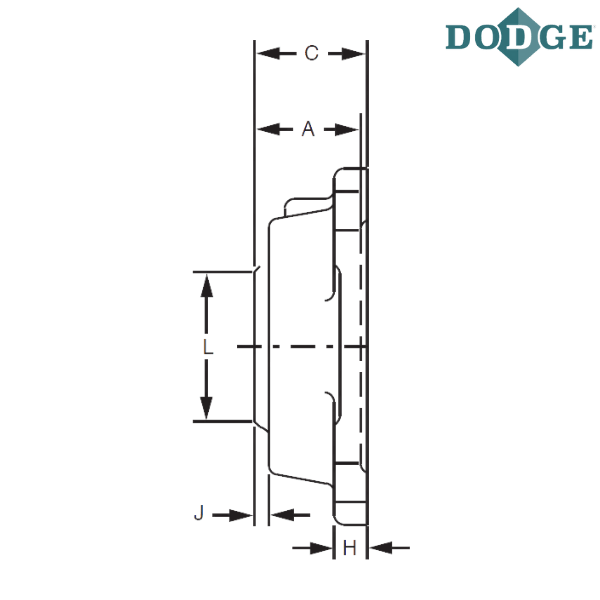

Length Through Bore (A) mm - 61.1
Overall Length (B) mm - 196.9
Thickness (C) mm - 70.6
Bolt Center to Center Length (D) mm - 152.4
F-Bolt Diameter (mm) - 18
H (mm) - 25.4
J (mm) - 13.5
L (mm) - 100
Notes :
F4B - Flange, 4 Bolt
LT10 - SOLIDLUBE LT 1000 Series
75M - First Two Digit: Bore In Millimeters
M : Indicates Metric Dimension
** Images are for representation purposes only
