034304 DODGE - NSTU-LT10-25M

Brand - DODGE
Item Number - 034304 DODGE - NSTU-LT10-25M
Category - Sleeve Bearings - SOLIDLUBE LT Narrow Slot Take-Up Bearings (LT1000)
Series - 205
Shaft Size (mm) - 25
Description - NSTU-LT10-25M
Weight (kg) - 0.77
Used On Frame - NS-210

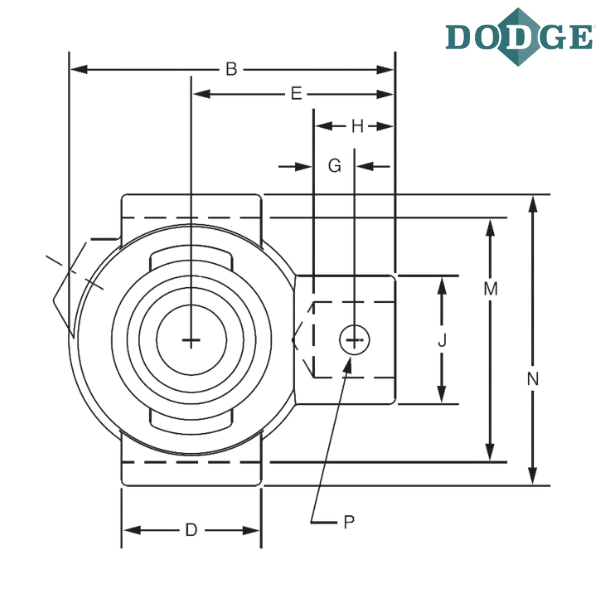

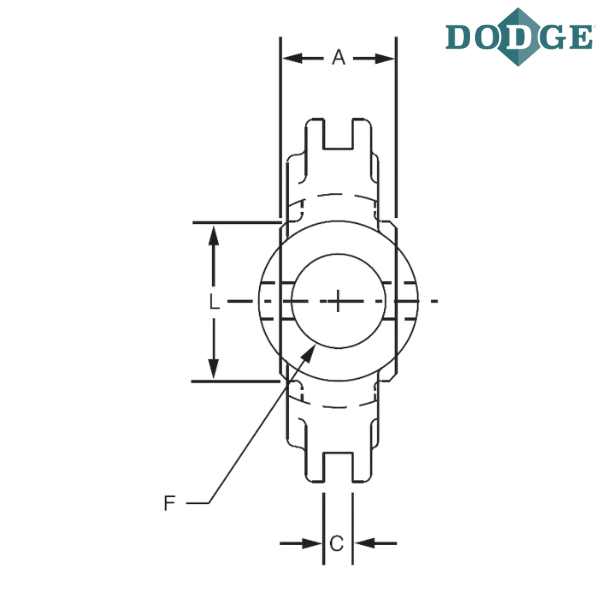

Length Through Bore (A) mm - 27
Overall Length (B) mm - 90.5
C (mm) - 6.4
D (mm) - 38.1
E (mm) - 55.6
F (Screw Diameter) inch - 0.75
G (mm) - 11.1
H (mm) - 22.2
J (mm) - 34.9
L (mm) - 39.7
M (mm) - 66.7
Overall Width (N) mm - 79.4
Pin Diameter (P) inch - 0.3125

Notes :
NSTU - Narrow Slot Take-Up
LT10 - SOLIDLUBE LT 1000 Series
25M - First Two Digit: Bore In Millimeters
M : Indicates Metric Dimension

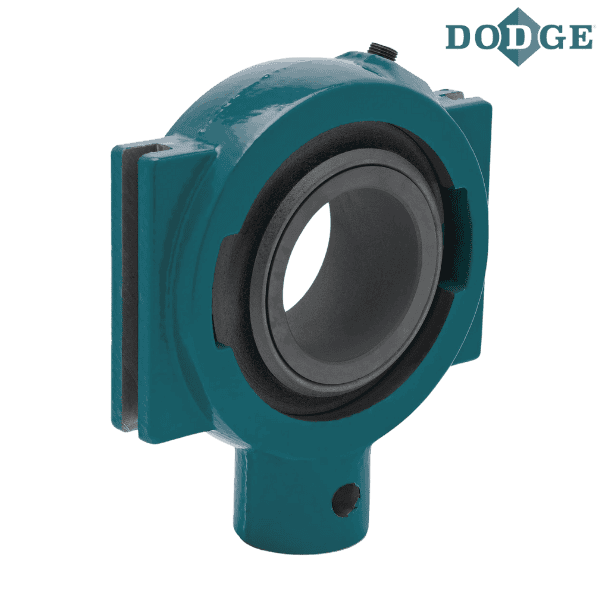

** Images are for representation purposes only
