Description
Brand - DODGE
Item Number - 034309 DODGE - NSTU-LT10-50M
Category - Sleeve Bearings - SOLIDLUBE LT Narrow Slot Take-Up Bearings (LT1000)
Series - 210
Shaft Size (mm) - 50
Description - NSTU-LT10-50M
Weight (kg) - 2.4
Used On Frame - NS-400

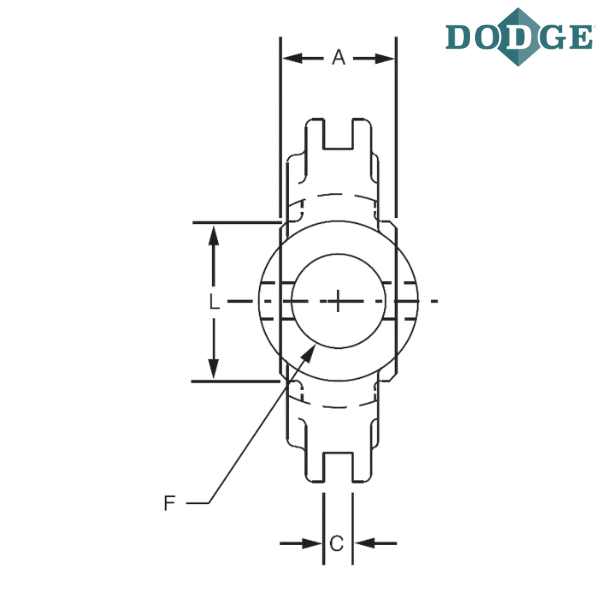

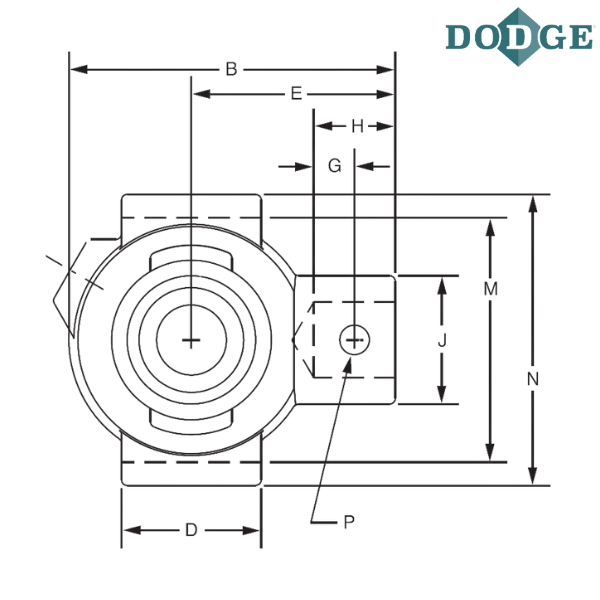

Length Through Bore (A) mm - 41.3
Overall Length (B) mm - 139.7
C (mm) - 7.9
D (mm) - 76.2
E (mm) - 82.6
F (Screw Diameter) inch - 0.875
G (mm) - 12.7
H (mm) - 27.8
J (mm) - 41.3
L (mm) - 71.4
M (mm) - 101.6
Overall Width (N) mm - 120.7
Pin Diameter (P) inch - 0.375
Notes :
NSTU - Narrow Slot Take-Up
LT10 - SOLIDLUBE LT 1000 Series
50M - First Two Digit: Bore In Millimeters
M : Indicates Metric Dimension

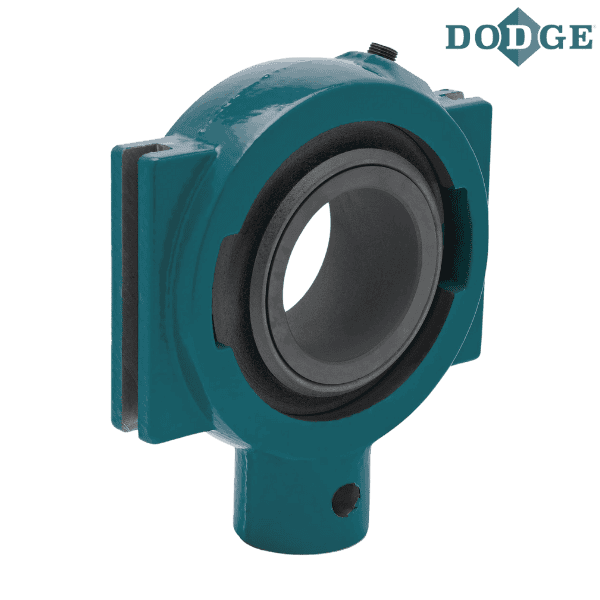

** Images are for representation purposes only
