Description
Brand - DODGE
Item Number - 034316 DODGE - WSTU-LT7-35M
Category - Sleeve Bearings - SOLIDLUBE LT Wide Slot Take-Up Bearings (LT700)
Series - 207
Shaft Size (mm) - 35
Description - WSTU-LT7-35M
Weight (kg) - 1.77
Used on Frame - WS-308

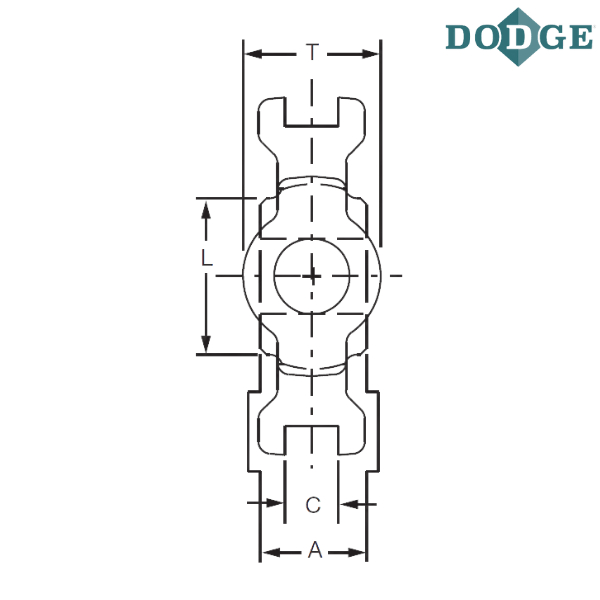

Length Through Bore (A) mm - 33.3

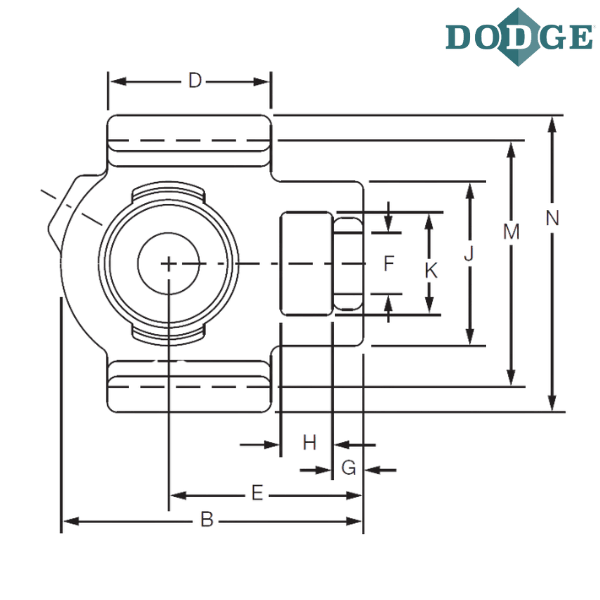

Overall Length (B) mm - 123.8
C (mm) - 13.5
D (mm) - 63.5
E (mm) - 77.8
F-Bolt Diameter (inch) - 0.875
G (mm) - 23.7
H (mm) - 15.9
J (mm) - 63.5
K (mm) - 36.5
L (mm) - 54
M (mm) - 88.9
Overall Width (N) mm - 104.8
Thickness (T) mm - 41.3
Notes :
WSTU - Wide Slot Take-Up
LT7 - SOLIDLUBE LT700 Series
35M - First Two Digit: Bore In Millimeters
M : Indicates Metric Dimension

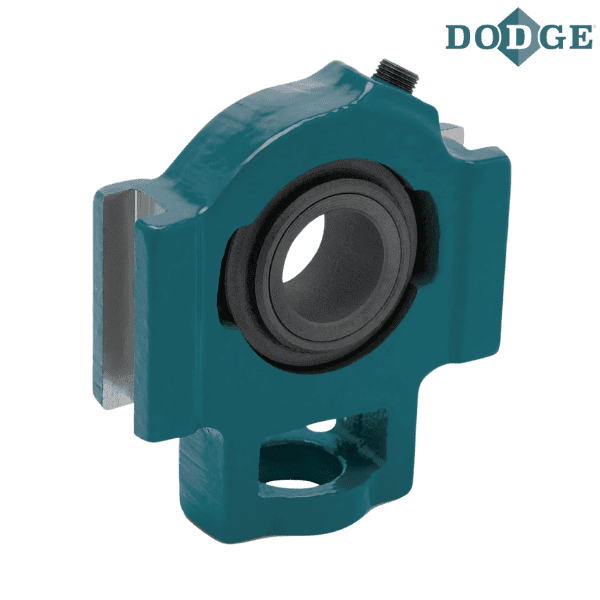

** Images are for representation purposes only
