Description
Brand - DODGE
Item Number - 034323 DODGE - WSTU-LT10-20M
Category - Sleeve Bearings - SOLIDLUBE LT Wide Slot Take-Up Bearings (LT1000)
Series - 204
Shaft Size (mm) - 20
Description - WSTU-LT10-20M
Weight (kg) - 1.09
Used on Frame - WS-300

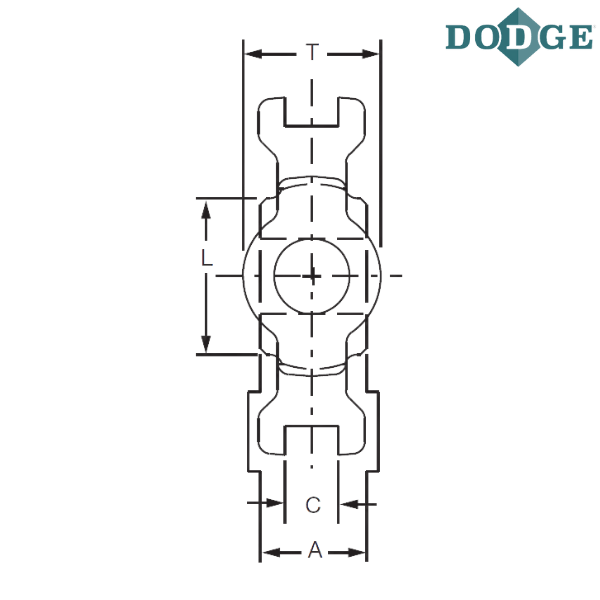

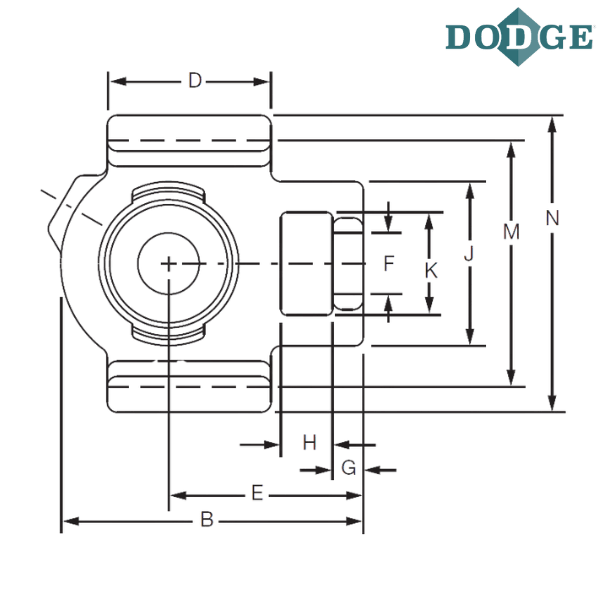

Length Through Bore (A) mm - 25.4
Overall Length (B) mm - 93.7
C (mm) - 13.5
D (mm) - 50.8
E (mm) - 60.3
F-Bolt Diameter (inch) - 0.75
G (mm) - 9.5
H (mm) - 15.9
J (mm) - 50.8
K (mm) - 31.8
L (mm) - 34.9
M (mm) - 76.2
Overall Width (N) mm - 92.1
Thickness (T) mm - 34.9
Notes :
WSTU - Wide Slot Take-Up
LT10 - SOLIDLUBE LT 1000 Series
20M - First Two Digit: Bore In Millimeters
M : Indicates Metric Dimension

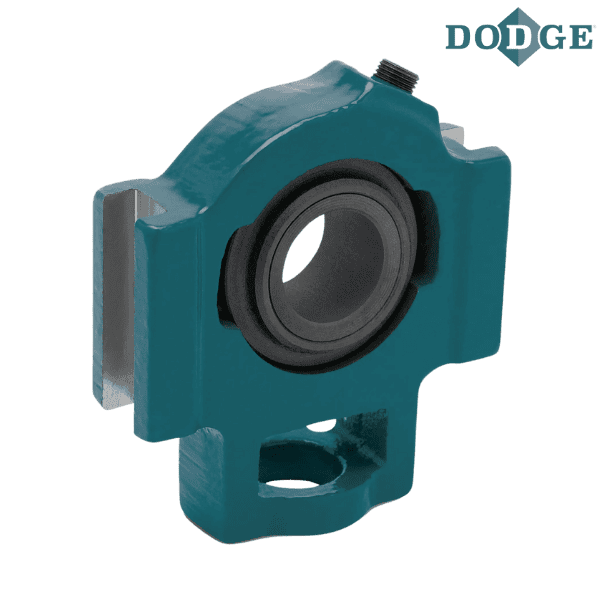

** Images are for representation purposes only
