Description
Brand - DODGE

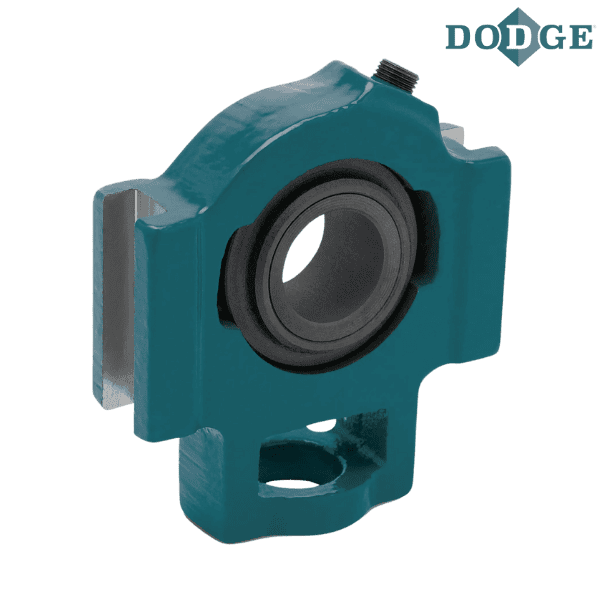

Item Number - 034324 DODGE - WSTU-LT10-25M
Category - Sleeve Bearings - SOLIDLUBE LT Wide Slot Take-Up Bearings (LT1000)
Series - 205
Shaft Size (mm) - 25
Description - WSTU-LT10-25M
Weight (kg) - 1.09
Used on Frame - WS-300

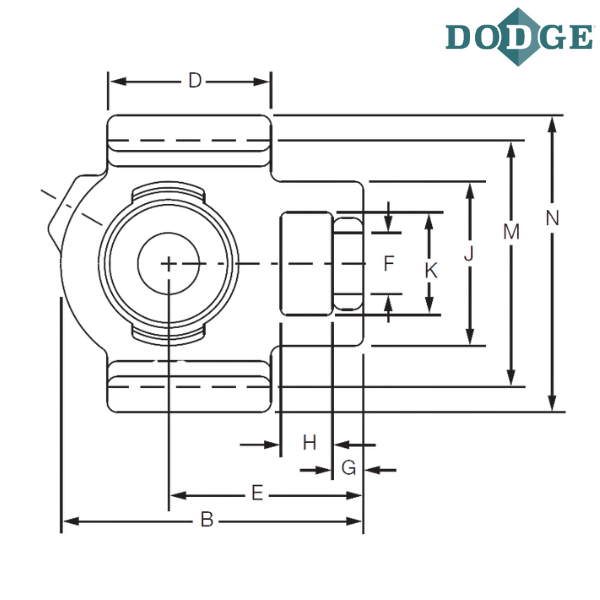

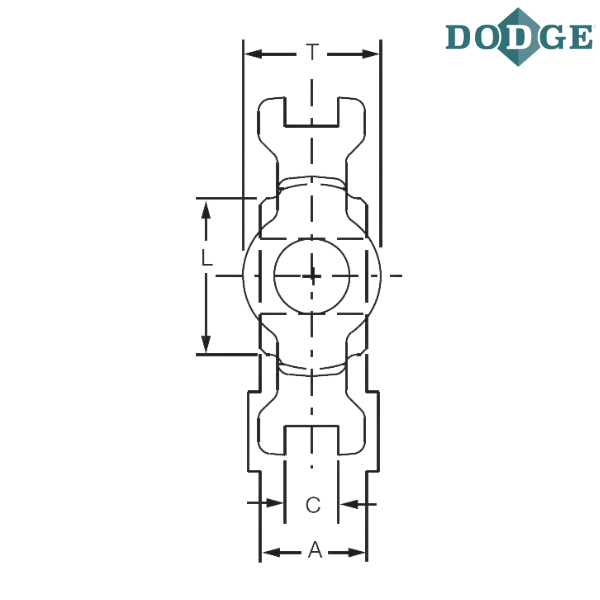

Length Through Bore (A) mm - 27
Overall Length (B) mm - 96.8
C (mm) - 13.5
D (mm) - 50.8
E (mm) - 61.9
F-Bolt Diameter (inch) - 0.8125
G (mm) - 9.5
H (mm) - 15.9
J (mm) - 50.8
K (mm) - 33.3
L (mm) - 39.7
M (mm) - 76.2
Overall Width (N) mm - 92.1
Thickness (T) mm - 34.9
Notes :
WSTU - Wide Slot Take-Up
LT10 - SOLIDLUBE LT 1000 Series
25M - First Two Digit: Bore In Millimeters
M : Indicates Metric Dimension
** Images are for representation purposes only
