Description
Brand - DODGE
Item Number - 034325 DODGE - WSTU-LT10-30M
Category - Sleeve Bearings - SOLIDLUBE LT Wide Slot Take-Up Bearings (LT1000)
Series - 206
Shaft Size (mm) - 30
Description - WSTU-LT10-30M
Weight (kg) - 1.41
Used on Frame - WS-308

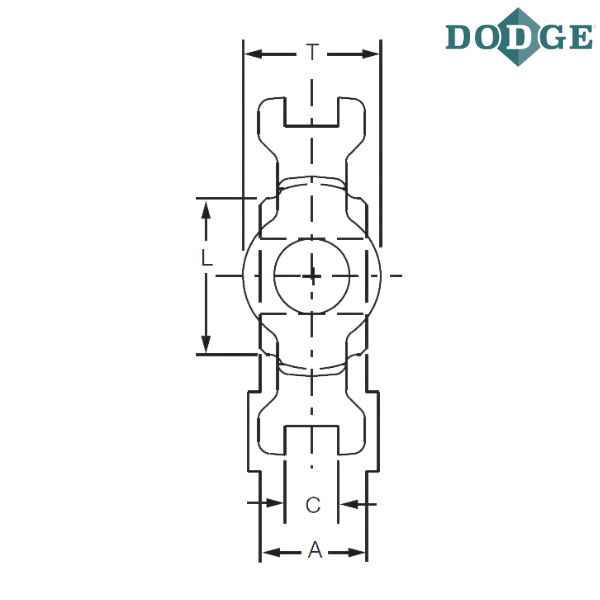

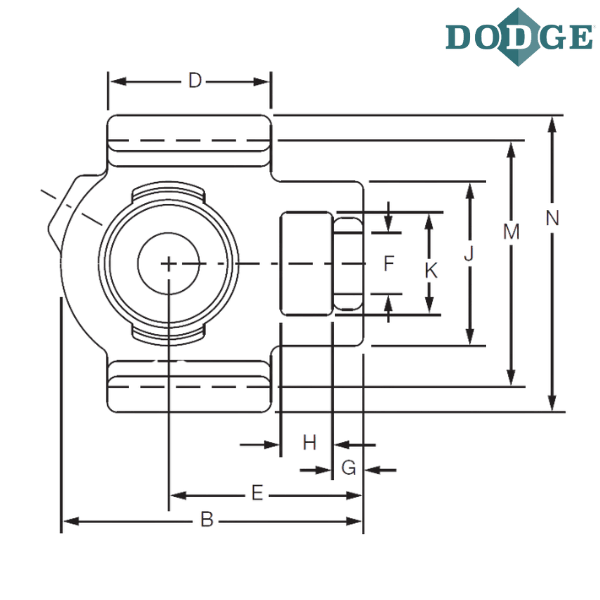

Length Through Bore (A) mm - 30.2
Overall Length (B) mm - 111.1
C (mm) - 13.5
D (mm) - 57.2
E (mm) - 69.9
F-Bolt Diameter (inch) - 0.875
G (mm) - 9.5
H (mm) - 15.9
J (mm) - 55.6
K (mm) - 36.5
L (mm) - 46
M (mm) - 88.9
Overall Width (N) mm - 104.8
Thickness (T) mm - 41.3
Notes :
WSTU - Wide Slot Take-Up
LT10 - SOLIDLUBE LT 1000 Series
30M - First Two Digit: Bore In Millimeters
M : Indicates Metric Dimension

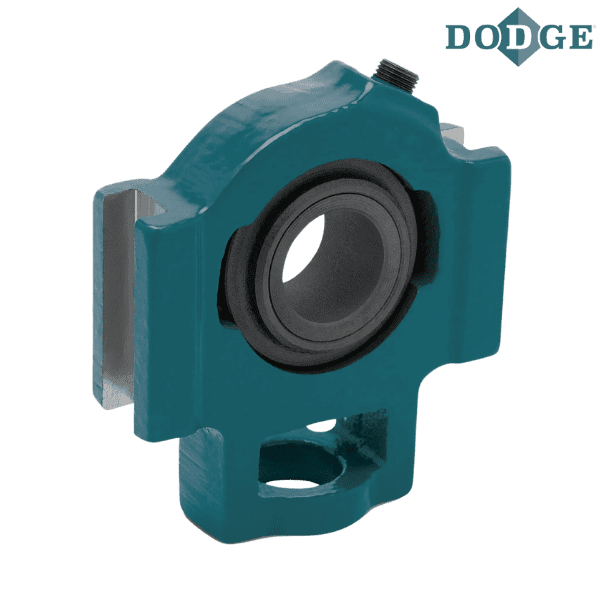

** Images are for representation purposes only
