Description
Brand - DODGE
Item Number - 034329 DODGE - WSTU-LT10-50M
Category - Sleeve Bearings - SOLIDLUBE LT Wide Slot Take-Up Bearings (LT1000)
Series - 210
Shaft Size (mm) - 50
Description - WSTU-LT10-50M
Weight (kg) - 2.95
Used on Frame - WS-400

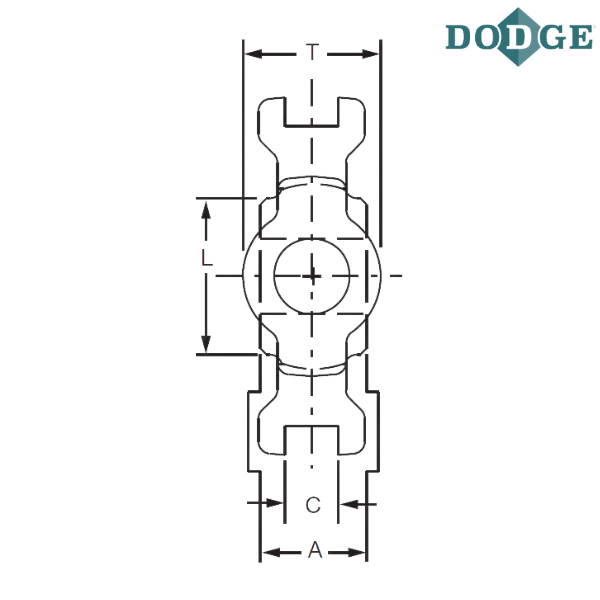

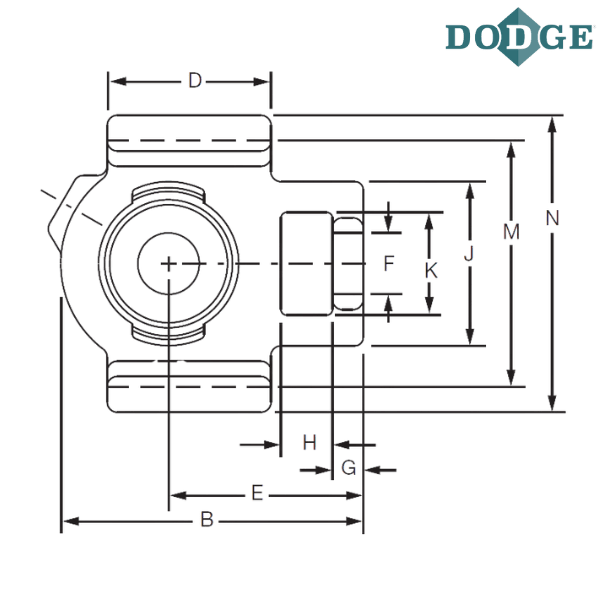

Length Through Bore (A) mm - 41.3
Overall Length (B) mm - 147.6
C (mm) - 17.5
D (mm) - 85.7
E (mm) - 90.5
F-Bolt Diameter (inch) - 1.125
G (mm) - 15.9
H (mm) - 19.1
J (mm) - 82.6
K (mm) - 49.2
L (mm) - 71.4
M (mm) - 101.6
Overall Width (N) mm - 120.7
Thickness (T) mm - 49.2
Notes :
WSTU - Wide Slot Take-Up
LT10 - SOLIDLUBE LT 1000 Series
50M - First Two Digit: Bore In Millimeters
M : Indicates Metric Dimension

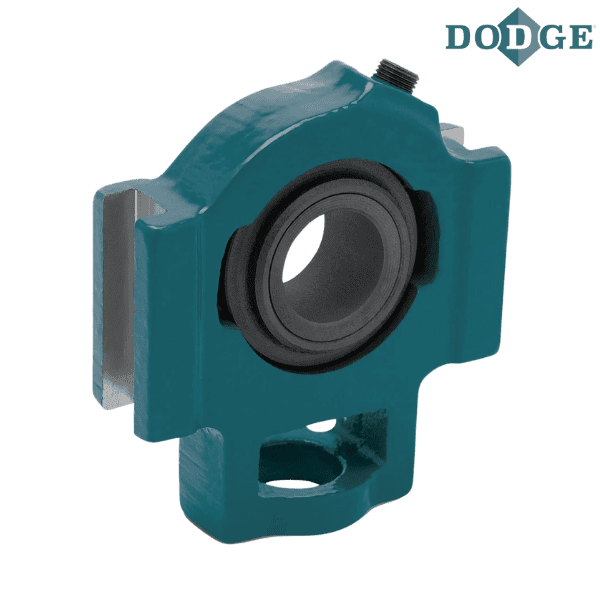

** Images are for representation purposes only
