Description
Brand - DODGE

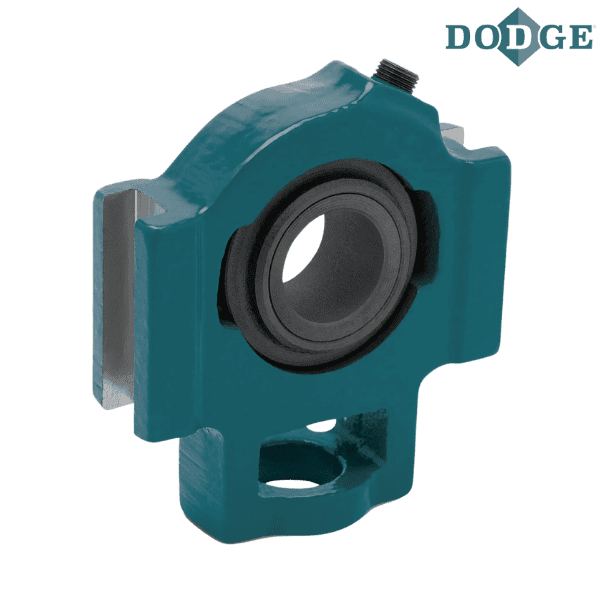

Item Number - 034331 DODGE - WSTU-LT10-70M
Category - Sleeve Bearings - SOLIDLUBE LT Wide Slot Take-Up Bearings (LT1000)
Series - 215
Shaft Size (mm) - 70
Description - WSTU-LT10-70M
Weight (kg) - 5.9
Used on Frame - WS-515

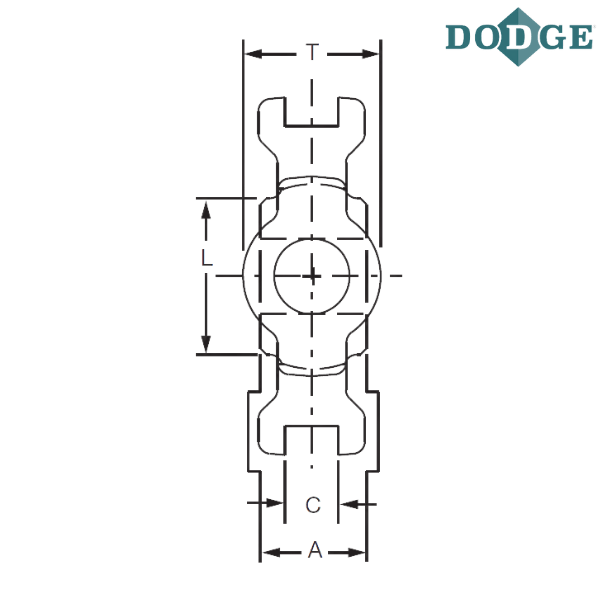

Length Through Bore (A) mm - 69.1

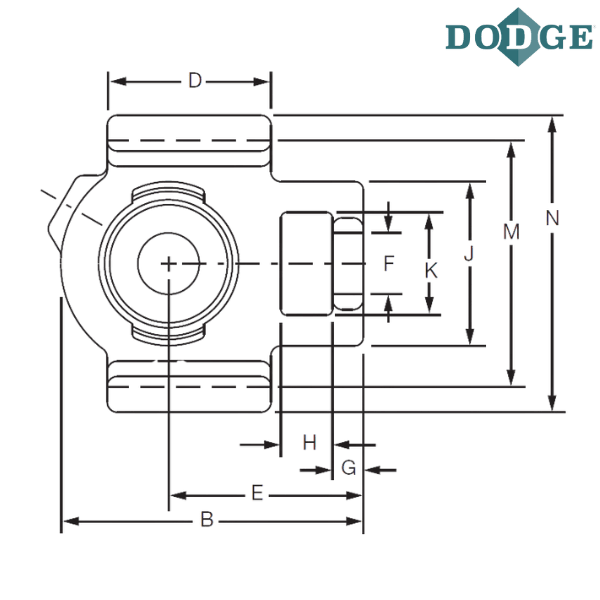

Overall Length (B) mm - 231.8
C (mm) - 27
D (mm) - 120.7
E (mm) - 139.7
F-Bolt Diameter (inch) - 1.5625
G (mm) - 20.6
H (mm) - 31.8
J (mm) - 111.1
K (mm) - 69.9
L (mm) - 100
M (mm) - 150.8
Overall Width (N) mm - 169.9
Thickness (T) mm - 69.9
Notes :
WSTU - Wide Slot Take-Up
LT10 - SOLIDLUBE LT 1000 Series
70M - First Two Digit: Bore In Millimeters
M : Indicates Metric Dimension
** Images are for representation purposes only
