Description
Brand - DODGE
Item Number - 034447 DODGE - INS-MM10-407
Category - Sleeve Bearings - SOLIDLUBE MM Bearing Inserts (1000 Series)
Shaft Size (inch) - 4.4375
Description - INS-MM10-407
Weight (lbs) - 20

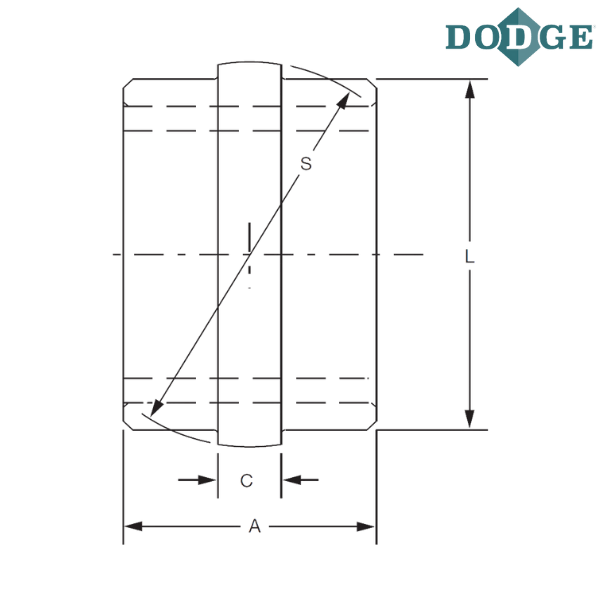

A (inch) - 4.5
C (inch) - 1.25
L (inch) - 6.9375
Spherical Diameter (S) inch - 7.370/7.367
Notes :
INS - Insert
MM10 - SOLIDLUBE MM1000 Series
407 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch
** Images are for representation purposes only
