Description
Brand - DODGE
Item Number - 034463 DODGE - INS-LT10-40M
Category - Sleeve Bearings - SOLIDLUBE LT Inserts (1000 Series)
Series - 209
Shaft Size (mm) - 40
LT1000 Series Description - INS-LT10-40M
Weight (kg) - 0.73

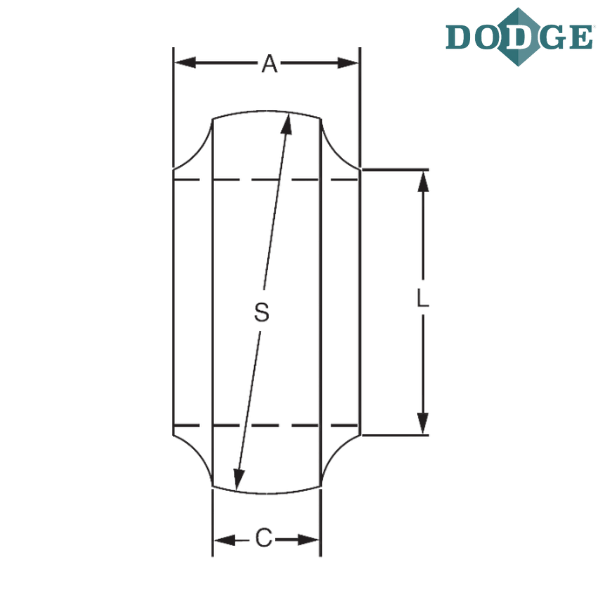

A (mm) - 39.7
C (mm) - 20.6
L (mm) - 65.1
S (mm) - 84.874 / 84.823
Notes :
INS - Insert
LT10 - SOLIDLUBE LT 1000 Series
40M - First Two Digit: Bore In Millimeters
M : Indicates Metric Dimension
** Images are for representation purposes only
